B12DPT-6

Key Features


  1. Intel® Xeon® Processor W Family
    Single Socket LGA-2066 (Socket R4) supported
  2. Intel® C422
  3. Up to 256GB Registered ECC RDIMM; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots

  4. PCI-E x16 Expansion for Various I/O Modules
  5. Dual LAN with
    Two(2)10GbE Ethernet ports from KR interface to BP
Specifications
Product SKUs

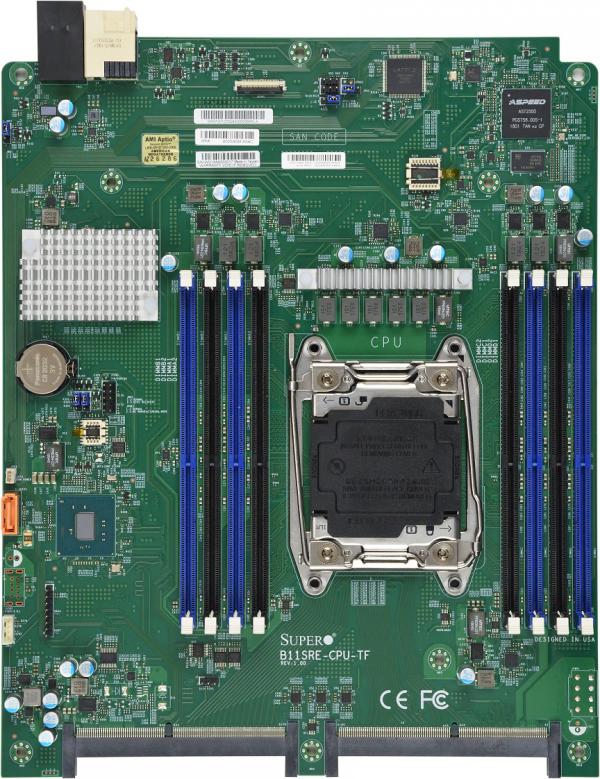

MBD-B11SRE-CPU-TF
  • B11SRE-CPU-TF

Physical Stats
Form Factor
  • Proprietary
Dimension
  • 9.358" x 11.606" (23.77cm x 29.48cm)

Processor
CPU
  • Intel® Xeon® Processor W Family
  • Single Socket LGA-2066 (Socket R4) supported

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 512GB ECC LRDIMM; Up to 256GB ECC RDIMM
Memory Type
  • 2666/2400/2133MHz ECC LRDIMM, RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C422
IPMI
  • ASPEED AST2500
Graphics
  • ASPEED AST2500 BMC
Network Controllers
  • Dual LAN, Two(2)10GbE Ethernet ports from KR interface to BP

Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • PCI-E x16 Expansion for Various I/O Modules

System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 6.1
  • UEFI 2.7
  • SMBIOS 2.8
  • Plug and Play (PnP)

Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

PC Health Monitoring
Voltage
  • VBAT, PCH temperature, Monitors CPU voltages, CPU temperature, +12V, Memory Voltages
LED
  • UID/Remote UID
  • Power LED
Other Features
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-B11SRE-CPU-TF 1 B11SRE-CPU-TF Motherboard
SuperBlade SBI-6119R-T3N 1 SBI-6119R-T3N Motherboard
Server (Optimized for B11SRE-CPU-TF)
