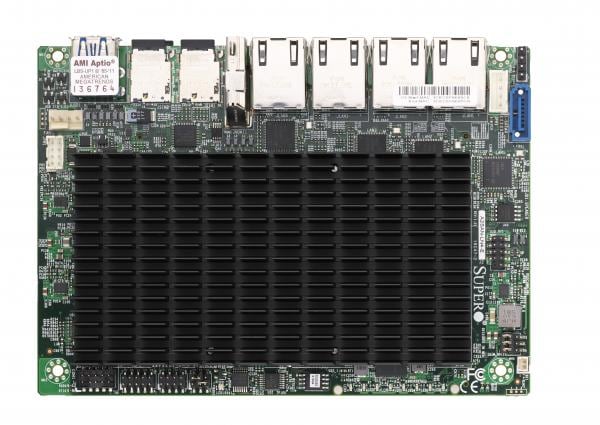

A2SAN-LN4-E

Key Features


  1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
  2. Intel® Atom processor E3940 (9.5W, 4C)
  3. Quad LAN with Intel® Ethernet Controller I210-IT
  4. Intel® Goldmont microarchitecture 14nm System-on-Chip
  5. 2 USB 3.0 ports, 2 USB 2.0 ports, 1 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
  6. Supports 12V DC power input
  7. 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
Specifications
Product SKUs
MBD-A2SAN-LN4-E
  • A2SAN-LN4-E

Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.866" x 4.17" (14.9cm x 10.6cm)

Processor
CPU
  • Intel® Atom® Processor E3940
  • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
Core
  • Up to 4 cores, 4 threads / 2MB Cache
Note

System Memory
Memory Capacity
  • 1 DIMM slots
  • Up to 8GB SODIMM, DDR3-1866MHz
Memory Type
  • 1866MHzDDR3 SODIMM DDR3L up to 8GB
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 1 SATA3 (6 Gbps) ports
Graphics
  • Intel® HD Graphics
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I210IT

Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 HDMI port(s)
Serial Port
  • 1 COM Port(s) (1 header)
Others
  • 1 8-bit GPIO header
  • 1 SMBus header
  • 1 System Fan
  • 1 onboard M2 active LED
  • 1 onboard GbE LAN active LED
Expansion Slots
PCI-E
  • N/A
M.2
  • Key: B-Key, E-Key

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0
  • UEFI 2.5
  • PCI FW 3.0

Management
Software
  • SuperDoctor® 5, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper

PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
FAN
  • 1x 4-pin fan header (up to 1 fan)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Low noise fan speed control
  • Fan speed control
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12v DC power connector

Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SAN-LN4-E 1 A2SAN-LN4-E Motherboard
A2SAN-E Heatsink SNK-C0103L 1 A2SAN-E Heatsink Height 20mm
DC IN Power cable CBL-PWEX-1029 1 DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
SATA cable CBL-SAST-0881 1 SATA Data cable 25CM
SATA Power Cable CBL-PWEX-0982 1 SATA Power Cable 25cm
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-A2SAN-LN4-E 1 A2SAN-LN4-E Motherboard
A2SAN-E Heatsink SNK-C0103L 1 A2SAN-E Heatsink Height 20mm
COM Port Cable CBL-OTHR-1061-15 1 COM Cable 15cm
DC IN Power cable CBL-PWEX-1029 1 DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
QRG MNL-2285-QRG 1 Motherboard Quick Reference Guide
SATA cable CBL-SAST-0881 1 SATA Data cable 25CM
SATA Power Cable CBL-PWEX-0982 1 SATA Power Cable 25cm
USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm
Optional Parts List
Name Part Number Qty Description
DC IN Power Cable (DC Jack) CBL-PWEX-1110-15 1 DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
Power Adapter MCP-250-10135-0N
MCP-250-10134-0N
1
1
FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS
60W 12V 5A, AC to DC lockable power adapter,HF
Server (Optimized for A2SAN-LN4-E)
Server Name
SYS-E102-9AP-LN4-E
