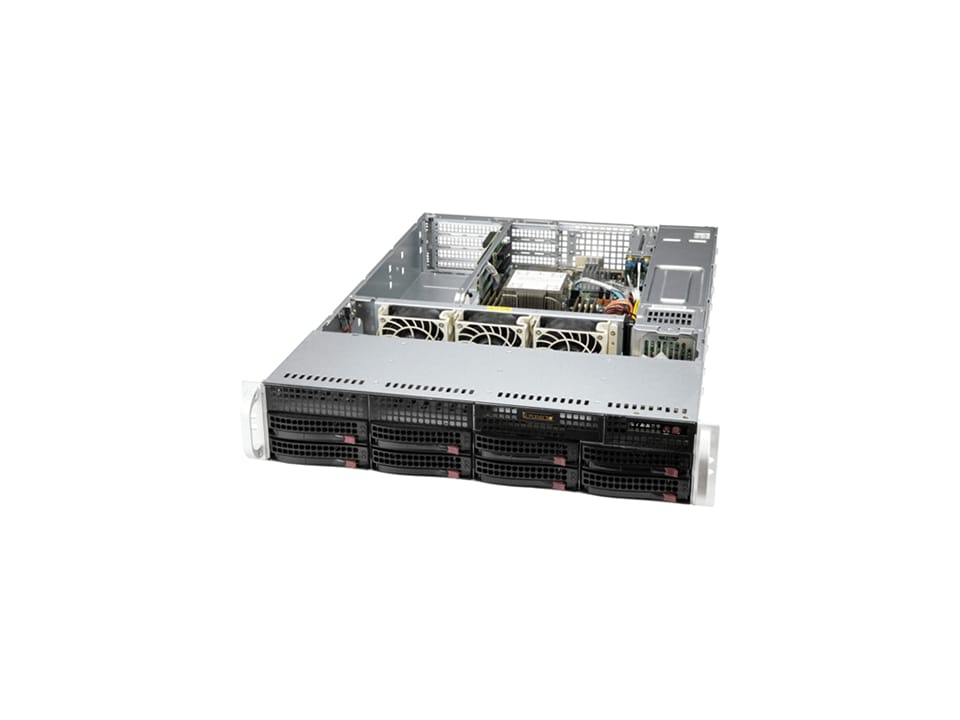

SYS-520P-WTR

Key Applications
- Data Center Optimized
- Database Processing and Storage
- Network Appliance



Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCI-E 4.0 x16 (FHFL) slots, 2 PCI-E 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2
  6. Redundant Platinum 650W Power Supply
Specifications
Product SKUs
SYS-520P-WTR
  • SuperServer SYS-520P-WTR (Black)

Motherboard


Super X12SPW-TF

Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 270W
Cores
  • Up to 36C/72T; Up to 60MB Cache

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1 support (*VROC HW key is required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
SATA
  • 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T LAN ports
USB
  • 3 USB port(s) (2 headers; 1 Type A)
  • 4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear)
  • 2 USB 2.0 port(s) (2 rear)
Video
  • 1 VGA 2 port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R609WP

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (647mm)
Package
  • 11" (H) x 26.5" (W) x 34" (D)
Weight
  • Net Weight: 34 lbs (15.42 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHFL
  • Slot 2: PCI-E 4.0 x16 FHFL
  • Slot 3: PCI-E 4.0 x8 LP
  • Slot 4: PCI-E 4.0 x8 LP

Drive Bays / Storage
Drive Bays
  • 8x 3.5" SATA drive bays (2x 2.5" NVMe dedicated)
M.2
  • 1x PCI-E 3.0 x 4 and SATA
  • M-key, 2280, 22110
Peripheral Bays
  • 2x 2.5" drive bays

System Cooling
Fans
  • 3 heavy duty PWM 80x80x38mm Fan(s)

Power Supply
Platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
Total Output Power
  • 650W
Dimension

(W x H x L)
  • 76 x 40 x 360 mm
AC Input
  • 650W: 200-240Vac / 3A-4A / 50-60Hz
+12V
  • Max: 54A / Min: 0.5A
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPW-TF

CSE-825BTS-R609WP
1

1
Super X12SPW-TF Motherboard

2U Chassis
Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0699 2 MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
Manual MNL-2264-QRG 1 520P-WTR Quick Reference Guide
Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-W2R-88G4 1 2U RHS WIO Riser card with two PCI-E 4.0 x8 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
*Power Distributor PDB-PT825-8824 1 SC825 24PIN REDUNDANT POWER DISTRIBUTOR
*Cable 2 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Cable 3 CBL-0160L 2 US POWER CORD 16AWG, PB FREE
*FAN 1 FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
*Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
*Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
*Drive Tray(s) MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5“ HDD tray
*Drive Tray(s) MCP-220-82502-0B 2 Black fixed 3.5" HDD tray or FDD dummy tray
*Rear Window MCP-240-82609-0N 1 SC826B, 216B WIO rear window
*Peripheral Drive1 MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
*Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82619-0N + 1x CBL-SAST-1154-85 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCI-E 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
Cable for Internal HDD CBL-0484L • 2 55cm 30AWG SATA straight to straigh cable
CBL-0289L 1 Y split, big 4 pin to two RA SATA power estenstion 30cm
CacheVault BTR-CVPM05 + MCP-240-00127-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed bay
BTR-TFM8G-LSICVM02 + MCP-240-00127-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed bay
BTR-CVPM05 + MCP-240-00203-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCI-E location
BTR-TFM8G-LSICVM02 + MCP-240-00203-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front Bezel MCP-210-82503-0B • 1 Black Front Bezel
Inlet Thermal Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1270S-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD; RAID 0, 1, 10
Storage Control Card and Cable(s) (HBA) AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD; HBA
AOC-S3808L-L8IT + 1x CBL-SAST-1270S-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 122HDD; HBA
TPM AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
WIO Riser Card RSC-W2-8888G4 1 2U LHS WIO Riser card with 4x (PCI-E 4.0 x8) slots
RSC-W2-688G4 1 2U LHS WIO Riser card with 1x (PCI-E 4.0 x16) and 2x (PCI-E 4.0 x8) slots
