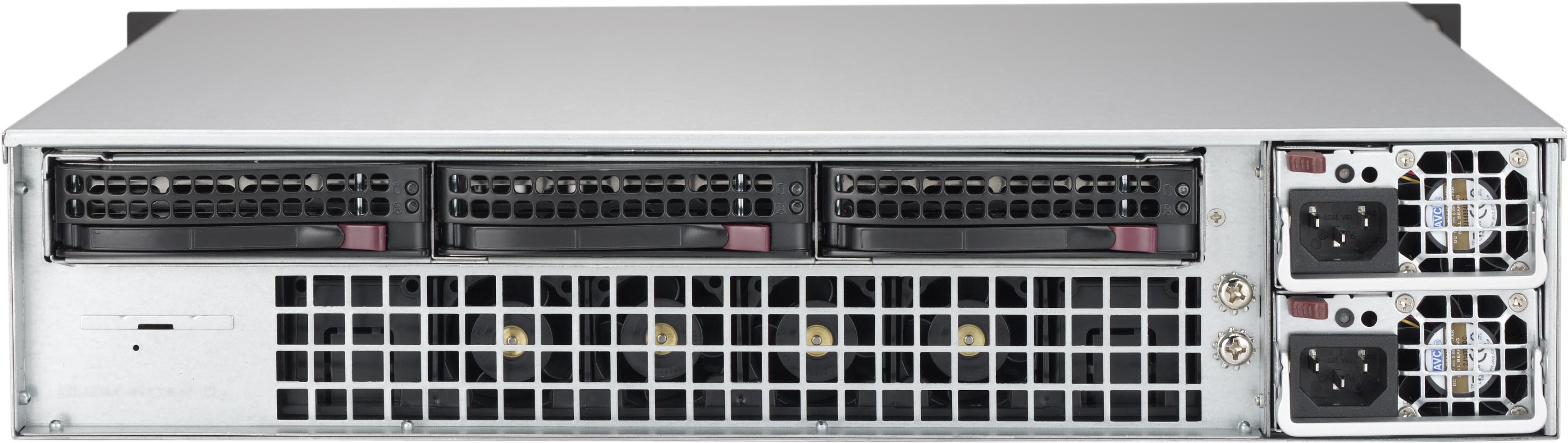

CSE-523L-505B

Key Features


  1. 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  5. 7 low-profile expansion slot(s)
  6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
    Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Specifications
Product SKUs
CSE-823MTQC-R802LPB
  • SuperChassis 823MTQC-R802LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5“ (89 mm)
Width
  • 17.2“ (437 mm)
Depth
  • 17.7“ (450 mm)
Gross Weight
  • 42 lbs (19.05 kg)
Packaging (W x H x L)
  • 23.4“ (594 mm) x 9.9“ (251 mm) x 32.5“ (826 mm)
Available Color
  • Black

Expansion Slots
  • 7x Low-profile expansion slot(s)

Drive Bays
  • 3x 3.5" hot-swap SAS/SATA drive bay with SGPIO

Backplane
  • 3-Port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
  • Optional 1x COM port tray
  • Optional 2x USB 2.0 ports

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • Optional 2x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • 4x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 200 - 240Vdc
  • 800W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0A (100Vac - 240Vac)
  • Max: 66A / Min: 0A (200Vdc - 240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT823M-8824
  • O/P: 12V/75A
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  •   Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Parts List
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Part(s) MCP-120-00062-0N 7 Blank LP L-bracket (5x5 square hole)
CD-ROM & Accessory MCP-290-82303-0B 1 Black DVD and USB dummy cover for SC823M
Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
Cooling Fan & Accessory MCP-320-82301-0B 1 Fan Tray for Six 4056 Fans
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5“ HDD tray
Drive Tray(s) MCP-220-82301-0N 1 HDD cage housing 3 trays for SC823M
Power Distributor PDB-PT823M-8824 1 SC823M 24PIN REDUNDANT POWER DISTRIBUTOR
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Rear Window MCP-240-82303-0B 1 Front I/O window for SC823M LP
Rear Window MCP-240-82304-0N 1 SC823M rear window
Optional Parts List
  Part Number Qty Description
Cable CBL-0044L • 3 SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat
CBL-0157L • 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
CBL-SAST-0948 • 1 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
Chassis parts MCP-290-82302-0N 1 Dummy HDD cover for SC823M
Drive Trays MCP-220-82302-0N 1 2.5" or 3.5" fixed HDD tray for SC823M
Front USB MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
HDD Kit MCP-220-81506-0N • 2 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
MCP-290-82301-0N 1 DVD and USB holder for SC823M
Rail MCP-290-00058-0N • 1 Short rail set, quick release, 19.6"~26.9" Extendable Length
SATA DVD Kit DVM-PNSC-DVD-SBT3 1 BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
Motherboard (for CSE-823MTQC-R802LPB)
X11SPH-nCTF X11SPH-nCTPF X11SPL-F X11SPM-F
X11SPM-TF X11SPM-TPF
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
