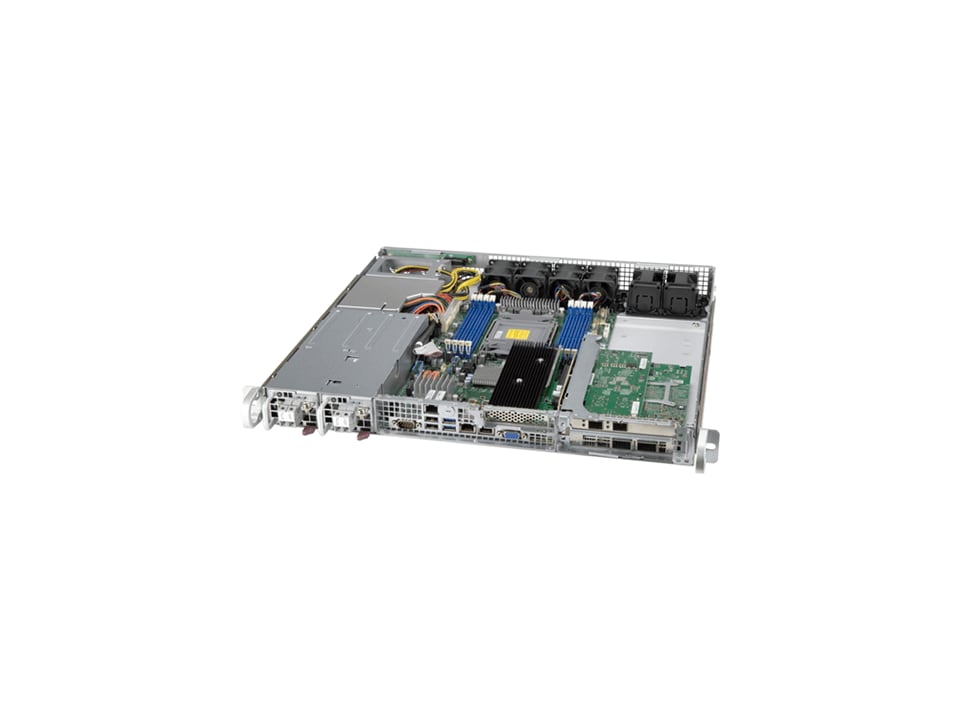

SYS-110P-FDWTR

Key Applications
- Multi-Access Edge Computing
- Outdoor DU of 5G Application
- Flex-RAN, Open-RAN vBBU



Key Features

  1. Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
  3. 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
  4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  5. 600W Redundant Power Supplies Level (92%+)
Specifications
Product SKUs
SYS-110P-FDWTR
  • SuperServer SYS-110P-FDWTR (No Paint)

Motherboard


Super X12SPW-TF

Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-205W
Cores
  • Up to 32C/64T; Up to 48MB Cache

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

Management
Software
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 25.2 lbs (11.43 kg)
Available Color
  • No Paint

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: 1 PCIe PCI-E 4.0 x16LP
  • Slot 2: 1 PCiE PCI-E 4.0 x16 FHFL
  • Slot 3: 1 PCiE PCI-E 4.0 x16 FHFL

Drive Bays / Storage
Drive Bays
  • 2x 2.5" SATA drive bays
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3
  • M-Key, 2280/22110

System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)

Power Supply
600W Redundant DC -48V Power Supplies with PMBus
Total Output Power
  • 600W : (-44) - (-65) Vdc
Dimension

(W x H x L)
  • 54.5 x 40 x 220 mm
+12V
  • Max: 50A
5V SB
  • Max: 3A / Min: 0A
Certification

  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPW-TF

CSE-515B-R601W
1

1
Super X12SPW-TF Motherboard

1U Chassis
Cable 1 CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
Cable 2 CBL-0483L 2 29CM 30AWG SATA S/S CBL
Cable 3 CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
FAN 1 FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
Heatsink / Retention SNK-P0077V 1 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-601S-1R 2 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
*Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
TPM security module AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
