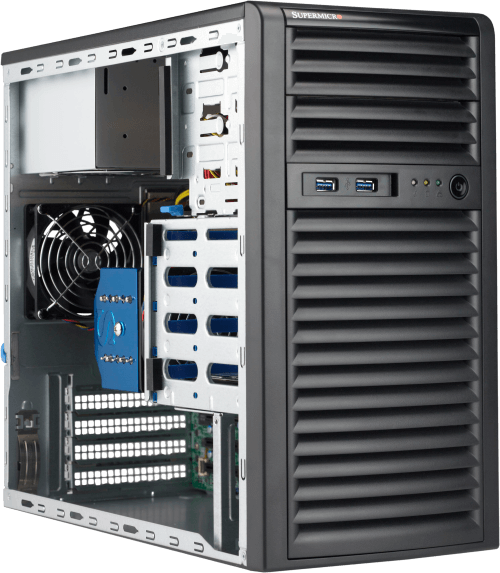

SYS-530T-I

Key Applications
- Entry-Level System for SOHO and SMB
- Storage, application and centralized data backup system Applications
- IPMI for remote management



Key Features

  1. Supports Intel® Xeon® E-2300 Series Processors
  2. PCI-E 4.0 Support
  3. Dual LAN ports, GbE and dedicated IPMI LAN port
  4. 9cm PWM quiet exhaust fan and optioal front intake fan
  5. 400W 80PLUS Gold Power Supply
Specifications
Product SKUs
SYS-530T-I
  • SuperServer SYS-530T-I (Black)

Motherboard


Super X12STL-F

Processor
CPU
  • Single Socket H5 (LGA 1200,Socket H5 LGA 1200)
  • Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
  • Support CPU TDP 95W
Cores
  • Up to 6C/12T,8C/16T; Up to 12,16MB Cache

System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® C252
Network Connectivity
  • 2x 1GbE BaseT with Intel® I210-AT

Input / Output
SATA
  • 6 SATA (6Gbps) port(s)
USB
  • 4 USB 3.2 Gen 1 port(s) (2 front Type A; 2 rear Type A)
  • 2 USB 2.0 port(s) (2 rear Type A)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)

System BIOS
BIOS Type
  • AMI 256MB SPI Flash

Management
Software
  • SuperDoctor 5
Power Configurations
  • ACPI 6.0

PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Chassis
Form Factor
  • mini-tower
Model

Dimensions and Weight
Height
  • 14.25" (362mm)
Width
  • 7.25" (184mm)
Depth
  • 16.75" (425mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Net Weight: 16 lbs (7.26 kg)
  • Gross Weight: 20 lbs (9.07 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power On
  • System Information LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 4: PCI-E 3.0 x2 (in x4)
  • Slot 5: PCI-E 4.0 x8
  • Slot 6: PCI-E 4.0 x8 (in x16)
  • Slot 7: PCI-E 4.0 x4 (in x8)

Drive Bays / Storage
Drive Bays
  • 4x 3.5" SATA drive bays
M.2
  • 1x PCI-E 3.0 x4
Peripheral Bays
  • 2x 5.25" drive bays

System Cooling
Fans
  • 1x 90mm Fan(s)

Power Supply
400W 80PLUS Gold PS/2 Power Supply
Dimension

(W x H x L)
  • 140 x 86 x 190 mm
AC Input
  • 100-240Vac / 50-60Hz
Output Type
  • PS/2
Certification   Gold Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12STL-F

CSE-731I-404B
1

1
Super X12STL-F Motherboard

mini-tower Chassis
Cable 1 CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
*Cable 2 CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
*Power Supply PWS-404-PQ 1 PS2 400W Multi-output High Efficiency 80PLUS Gold Power
*Cable 3 CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
*Cable 4 CBL-CUSB-1007 1 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
*FAN 1 FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
*Parts MCP-110-00033-0N 2 Binding Head Screw (with teeth) #632*4.5L
*Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
DVD Kit CBL-0082L • 1 Y SPLIT SATA POWER ADAPTER
CBL-SAST-0624 • 1 70cm SATA Cable S-S 30AWG
DVM-LITE-DVDRW24-HBT1 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
Fan FAN-0113L4 1 80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
HDD Converter MCP-220-73102-0N • 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0051AP4 • 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
