AS -1115CS-TNR

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

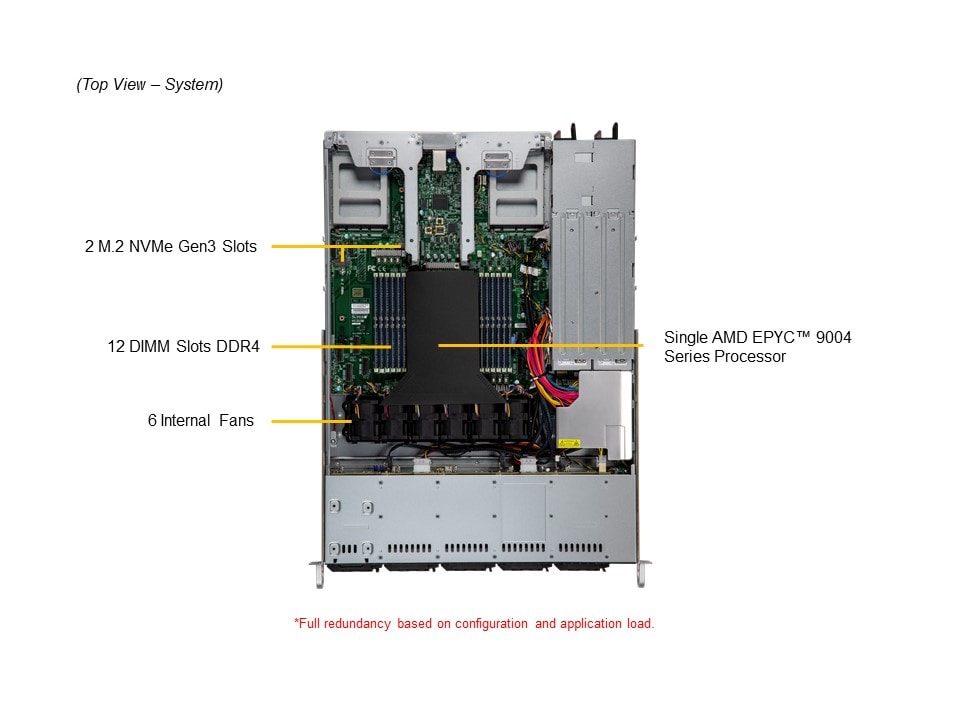

  1. Single 4th Generation AMD EPYC™ 9004 Series Processors
  2. 12 DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
  3. 2 PCIe 5.0 x16 FHHL
  4. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

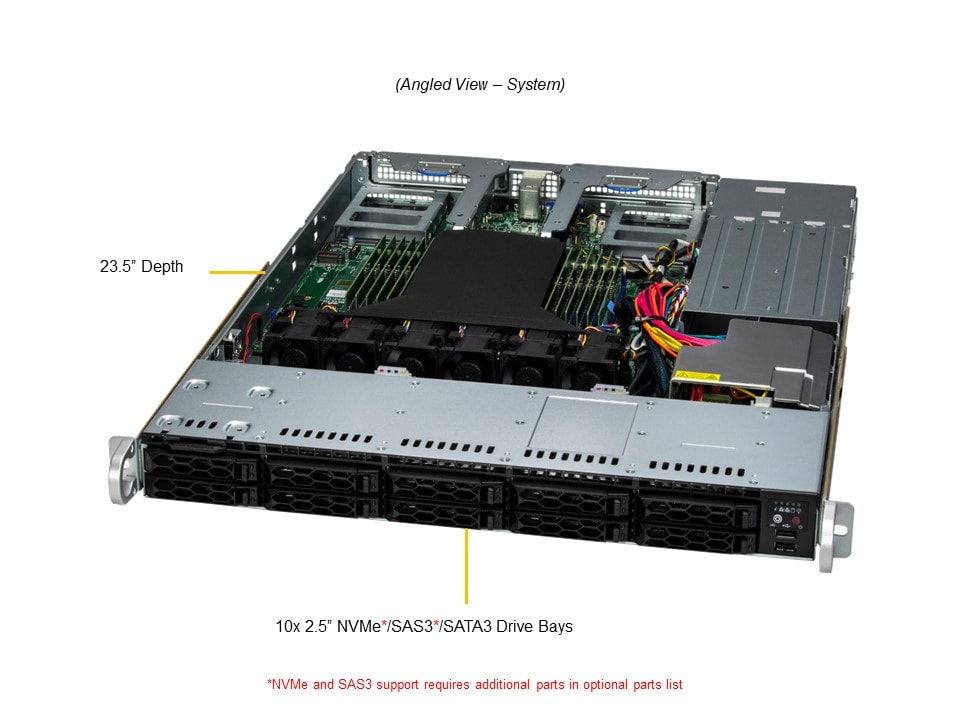

  5. 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  6. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
    (*Full redundancy based on configuration and application load)
  7. 2 On-board PCIe 3.0 x2 M.2 NVMe 80mm/110mm (Boot)
Specifications
Product SKUs
A+ Server AS -1115CS-TNR (Black front & sliver body)
Motherboard
Super H13SSW
Processor
CPU
  • Single Socket SP5
  • 4th Generation AMD EPYC™ 9004 Series Processor
  • Support CPU TDP up to 360W *
Cores
  • Up to 96C/192T
Note
  • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory
  • Memory Capacity: 12 DIMM slots
  • Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
  • Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory
Note
  • For optimal performance AMD recommends full memory population
Memory Voltage
  • 1.1 V
Error Detection
  • Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

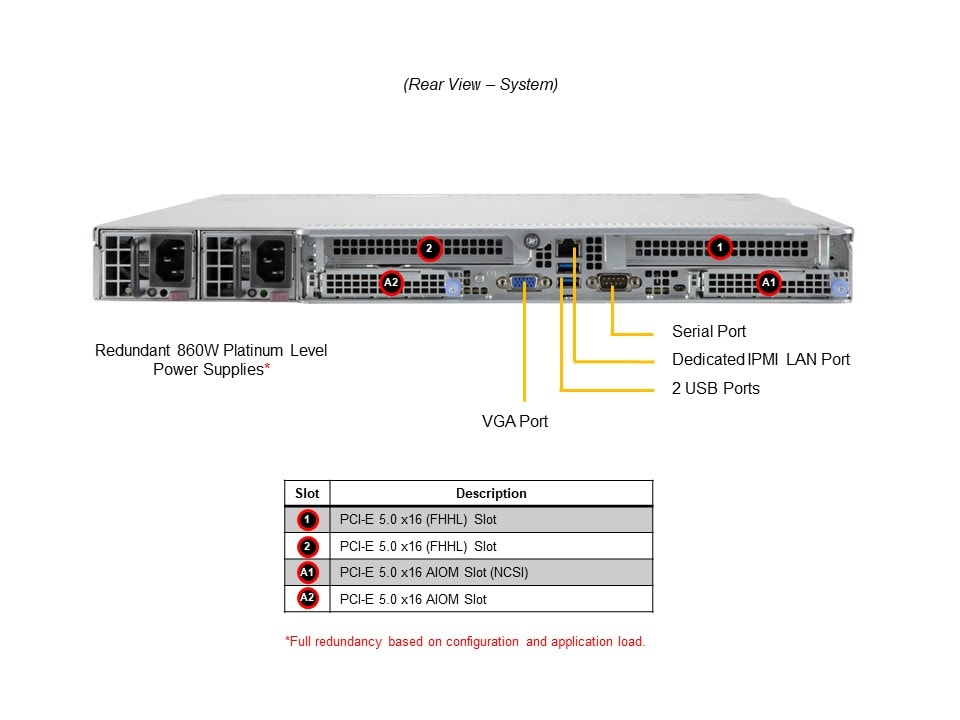

Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • IPMIView for Linux/ Windows
  • IPMICFG
  • SSM
  • SPM
  • SUM
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode control for AC power loss recovery
  • ACPI Power Management
PC Health Monitoring
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP-A
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 7.8" (H) x 23.8" (W) x 32.4" (D)
Weight
  • Net Weight: 25 lbs (11.3 kg)
  • Gross Weight: 46 lbs (20.9 kg)
Available Color
  • Black front & sliver body

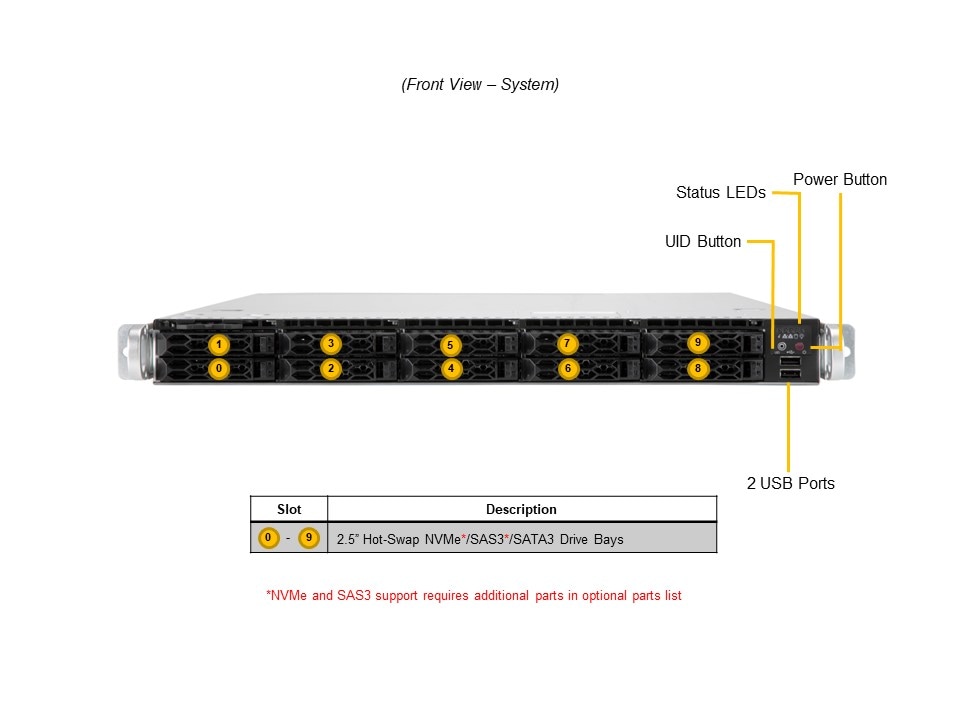

Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FH, 10.5"L slot(s)
  • 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" SATA by default)
M.2
  • 2x NVMe (PCIe Gen 3x2, Boot drive only)
  • M-Key, 2280/22110
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply
800W/860W 1U redundant power supply
Dimension

(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 9A-7.5A / 50-60Hz
  • 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Platinum Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Note
  • Operating Temperature based on configurations


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SSW

CSE-LB16TS-R860AWP-A
1

1
Super H13SSW Motherboard

1U Chassis
Backplane BPN-NVME5-LB16A-S10 1 1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13 CloudDC
Cable CBL-MCIO-1227EQS4 1 MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
CBL-MCIO-1243S4Y 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
CBL-CUSB-1001-57 1 [NR] USB2.0,2x5,PH2.54 to 2x5,PH2.54,57CM,28AWG
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0163L4 2 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
FAN-0163L4 4 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
FPB-FP116 1 Front control board for SC116 (USB 2.0 x 2)
Air Shroud MCP-310-LB005-0B 1 Mylar Air Shroud for AMD 1U CloudDC with H13SSW
MCP-310-LB006-0B 1 set Air block ( L+R) set for LB16-AW-A 1U CloudDC with H13SSW
Riser Card RSC-D-6G5 1 1U LHS DCO Riser card with one PIC-E 5.0 X16 slot,HF,RoH
RSC-DR-6G5 1 1U RHS DCO Riser card with one PCIe 5.0 X16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0082P 1 1U Passive CPU Heat Sink for AMD Socket SP5 Processors
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Parts MCP-160-00028-0B 1 Mylar Cable Channel for Cloud-DC, X12 DDW
*Drive Tray(s) MCP-220-00188-0B 10 Black gen-5.5 tool-less cost-effective 2.5
*Rear Window MCP-240-00173-0N 1 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
*Fan Holder MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan
MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
10 NVMe Optional Cables CBL-MCIO-1228M5RE 1 MCIO x8 (STR to RE), 28cm, 30#, Gen5, 85Ohm
CBL-MCIO-1218M5RE-J 4 MCIO x8 (STR to RE), 18cm,G5,32AWG
10 SATA/SAS Optional Parts AOC-S3816L-L16iT OR
AOC-S3916L-H16iR
1x CBL-SAST-1276F-100 (Support HDD slot 0~7)
1x CBL-SAST-1265F-100 (Support HDD slot 8,9)
- 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD
16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD
Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
Slimline x8 (STR) to Slimline x4 (STR),64CM
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
