AS -2015CS-TNR

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

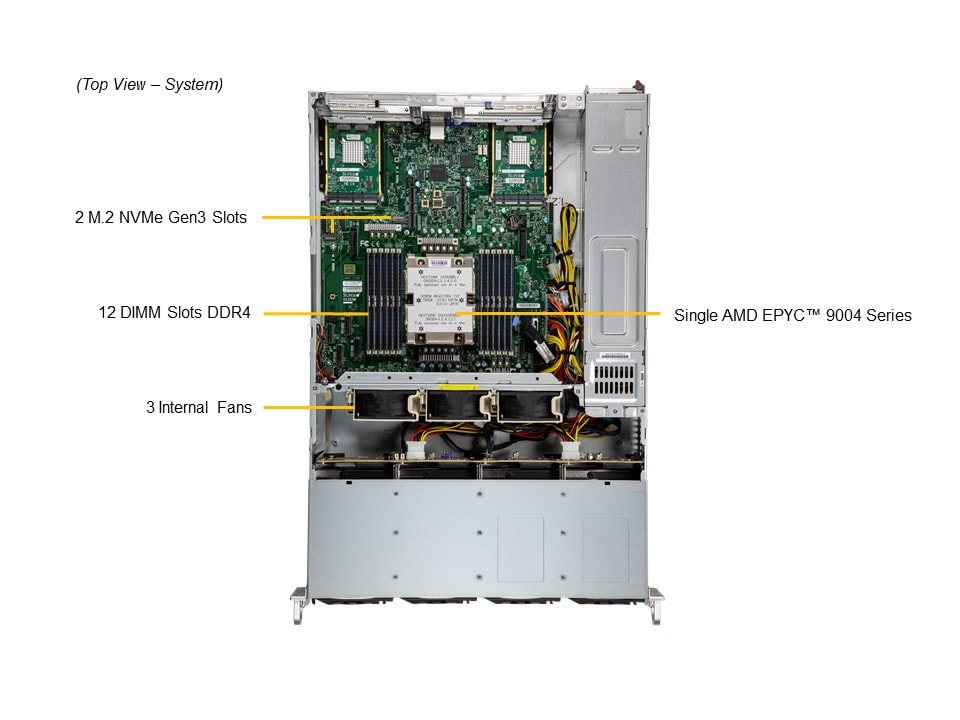

Key Features

  1. Single 4th Generation AMD EPYC™ 9004 Series Processors
  2. 12 DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
  3. 2 PCIe 5.0 x16 FHFL
    2 PCIe 5.0 x16 FHHL
  4. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  5. 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  6. 3 heavy duty fans with optimal fan speed control, 1 air shroud
  7. 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
    (*Full redundancy based on configuration and application load)
  8. 2 On-board PCIe 3.0 x2 M.2 NVMe 80mm/110mm (Boot)
Specifications
Product SKUs
A+ Server AS -2015CS-TNR (Black front & sliver body)
Motherboard
Super H13SSW
Processor
CPU
  • Single Socket SP5
  • 4th Generation AMD EPYC™ 9004 Series Processor
  • Support CPU TDP up to 360W *
Cores
  • Up to 96C/192T
Note
  • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory
  • Memory Capacity: 12 DIMM slots
  • Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
  • Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory
Note
  • For optimal performance AMD recommends full memory population
Memory Voltage
  • 1.1 V
Error Detection
  • Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

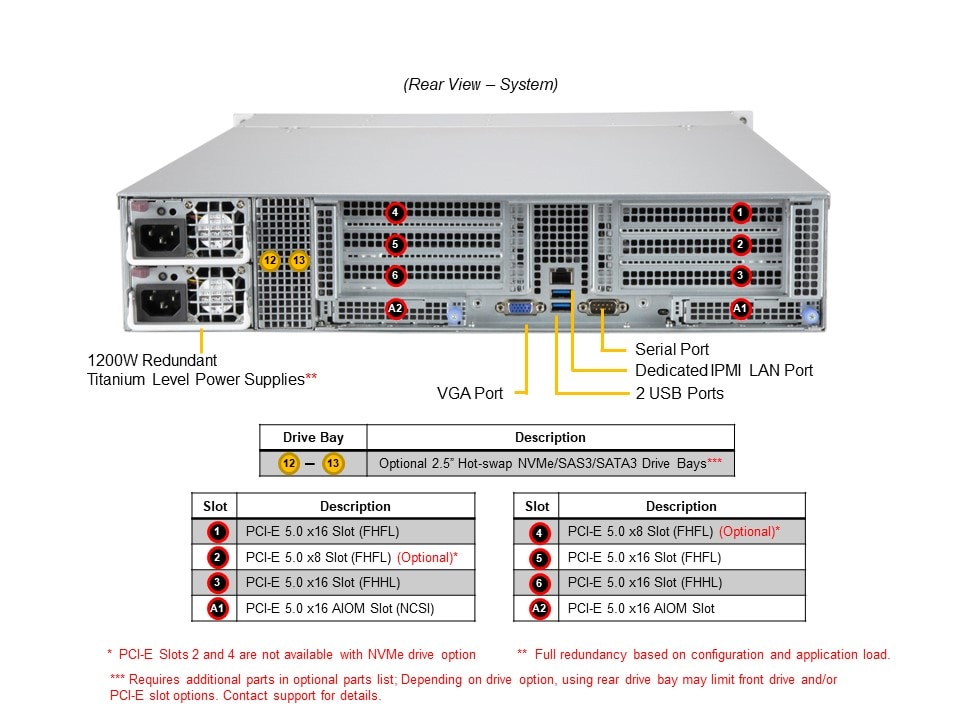

Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • IPMIView for Linux/ Windows
  • IPMICFG
  • SSM
  • SPM
  • SUM
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode control for AC power loss recovery
  • ACPI Power Management
PC Health Monitoring
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (648mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Net Weight: 33 lbs (15 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Available Color
  • Black front & sliver body

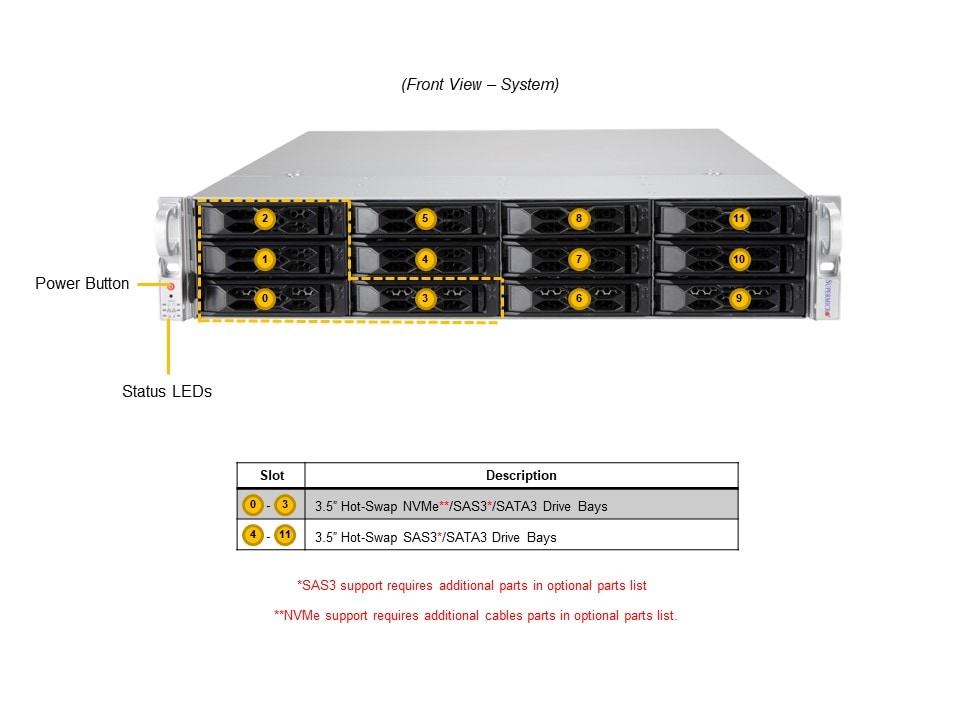

Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 2 PCIe 5.0 x16 AIOM Slot slot(s)

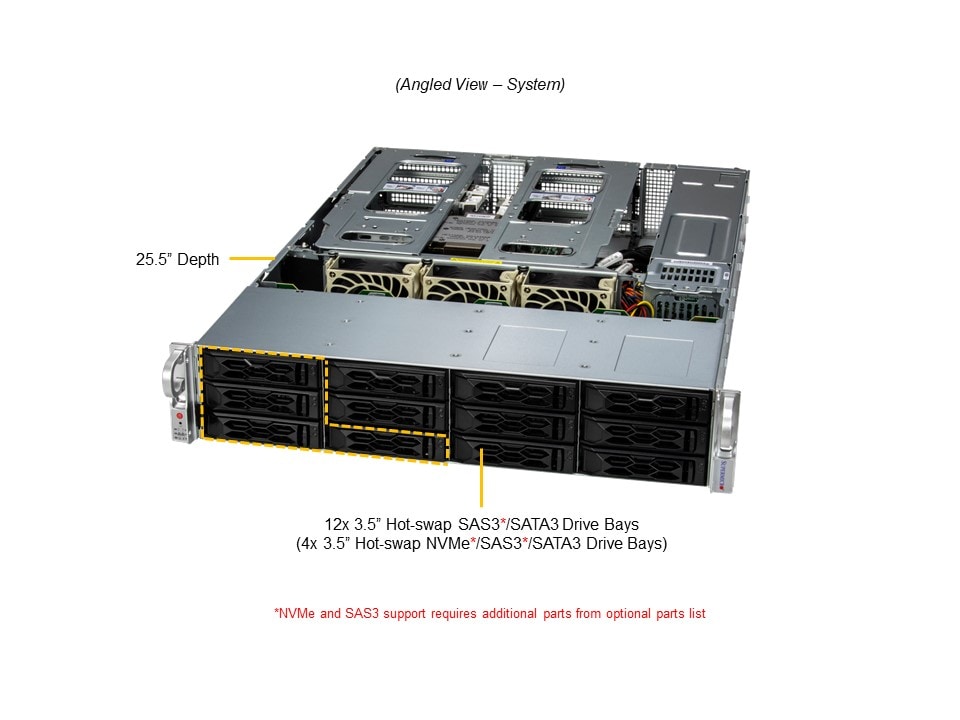

Drive Bays / Storage
Hot-swap
  • 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 3.5" NVMe hybrid; 12x 3.5" NVMe dedicated)
M.2
  • 2x NVMe (PCIe Gen 3x2, Boot drive only)
  • M-Key, 2280/22110
System Cooling
Fans
  • 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 15A-12A / 50-60Hz
  • 1200W: 200-240Vac / 8.5A-7A / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Note
  • Operating Temperature based on configurations


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SSW

CSE-LA26TS-R1K23AWP1
1

1
Super H13SSW Motherboard

2U Chassis
Backplane BPN-NVME5-LA26A-S12 1 2U 12-Slot 3.5
Cable CBL-MCIO-1227EQS4 1 MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
CBL-MCIO-1243S4Y 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
CBL-MCIO-1339M5R 4 MCIO x8 (STR to RA),39CM,32AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Riser Card RSC-D2-666G5 1 2U LHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
RSC-D2R-666G5 1 2U RHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0083P 1 2U Passive CPU Heat Sink for AMD Socket SP5 Processors, RoHS
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT826-S4824 1 Based on PDB-PT826-8824 to add 2pcs 8pin for option support
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
*Rear Window MCP-240-00170-0N 1 2U X12 WIO rear window for SCLA26
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2“W
*Air Shroud MCP-310-82619-0B 1 Sponge air Block sets for CSE-826B and LA26-AW
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
12 NVMe Optional Cables CBL-MCIO-1339M5R 1 MCIO x8 (STR to RA),39CM,32AWG
CBL-MCIO-1232M5 5 MCIO x8 (STR to STR),32cm,85OHM
4 NVMe Optional Cables CBL-MCIO-1232M5 2 MCIO x8 (STR to STR),32cm,85OHM
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
Two optional PCIe 5.0 x8 for slot 2&4
(For 12 SATA Configuration Only)
CBL-MCIO-1339M5R 2 MCIO x8 (STR to RA),39CM,32AWG
