SYS-241E-TNRTTP

Key Applications

  • Artificial Intelligence (AI)
  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

Key Features

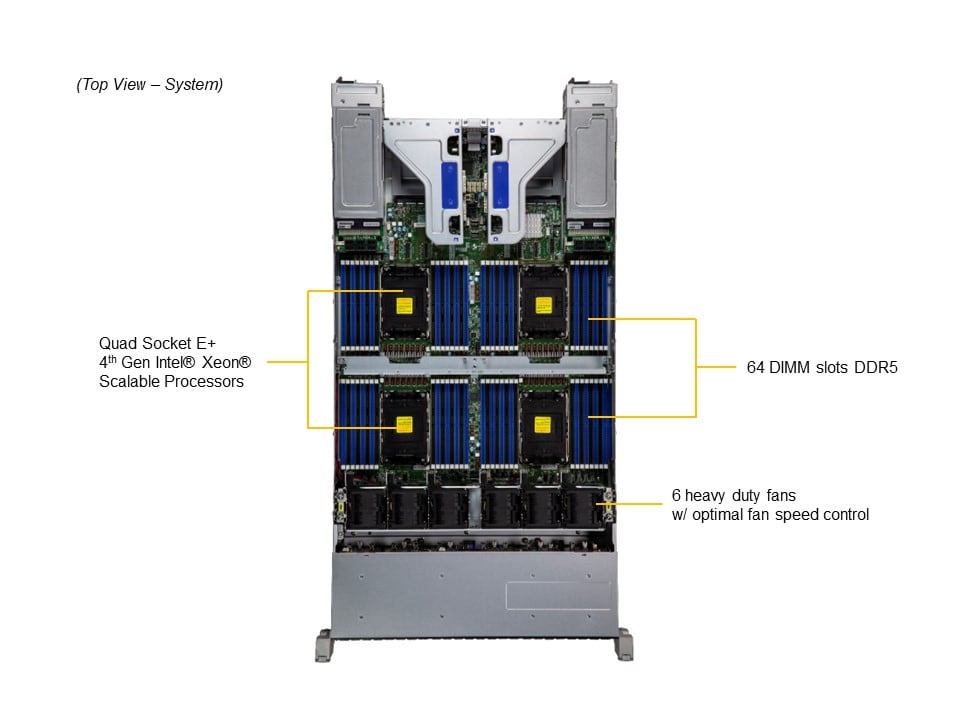

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 64 DIMM Slots;
    Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS;
    Up to 24TB with® Optane™ Persistent Memory 300 series
  3. Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accerlator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

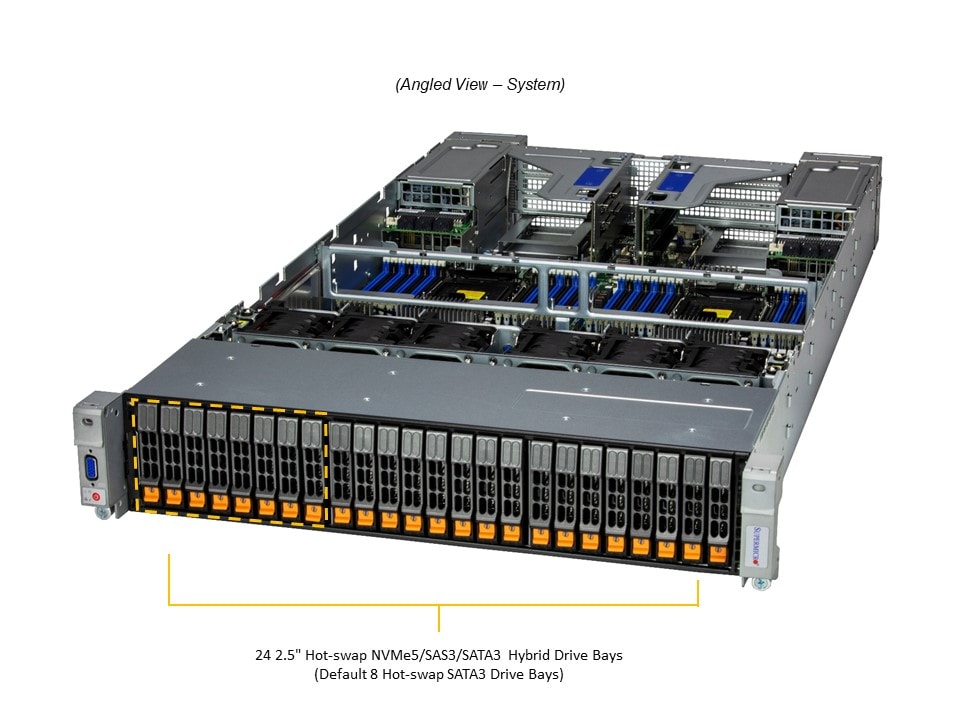

  5. 24x 2.5" Hot-swap NVMe/SAS3/SATA3 Hybrid Drive bays (Default with 24 SAS3/SATA3 drive bays);
    2x internal M.2 NVMe/SATA;
    Optional RAID support via storage add-on card
  6. 6 heavy duty fans w/ optimal fan speed control
Specifications
Product SKUs
SuperServer SYS-241E-TNRTTP (Black)
Motherboard
Super X13QEH+
Processor
CPU
Note
  • Supports 165W - 250W TDP CPUs (Aircooled)
  • CPUs with high TDP (air cooled) only supported under specific conditions. Contact Technical Support for details
System Memory
Memory
  • Memory Capacity: 64 DIMM slots
  • Up to 16TB: 64x 256 GB DRAM
  • Up to 24TB: 32x 256 GB DRAM and 32x 512 GB PMem
  • Memory Type: 4800MHz ECC DDR5 RDIMM/RDIMM-3DS
  • Intel® Optane™ persistent memory 300 series
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
  • 1 DisplayPort (s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218HTS-R3K2AWP
Dimensions and Weight
Height
  • 3.5" (87.9mm)
Width
  • 17.3" (438.4mm)
Depth
  • 33.4" (849.3mm)
Package
  • 9.75" (H) x 26.5" (W) x 43.5" (D)
Weight
  • Net Weight: 45.5 lbs (20.64 kg)
  • Gross Weight: 71.5 lbs (32.43 kg)
Available Color
  • Black

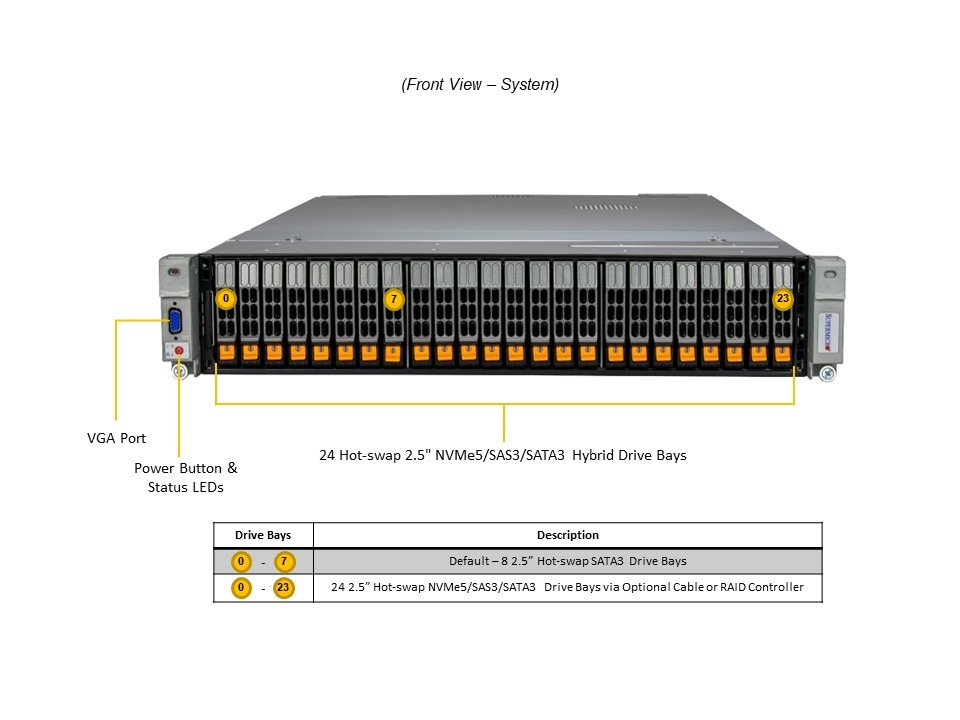

Front Panel
Buttons
  • Power On/Off
  • UID
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

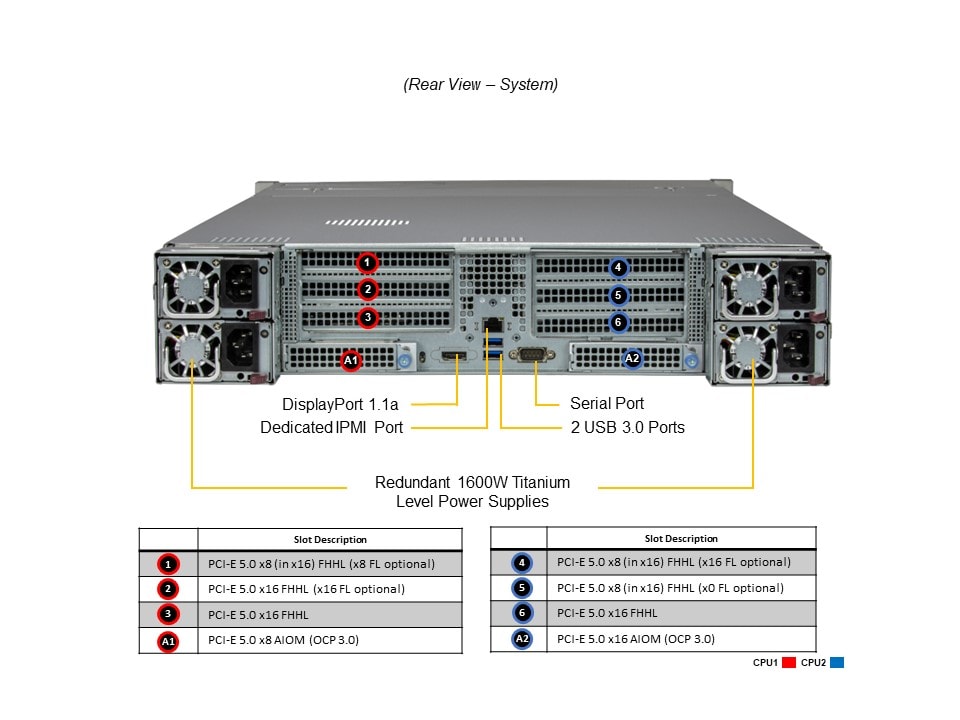

Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 1 PCIe 5.0 x16 AIOM slot(s)
  • 1 PCIe 5.0 x8 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5" NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 6 Heavy duty counter-rotating 6cm Fan(s)
Power Supply
1U 1600W Redundant Titanium AC Power Supply with PMbus 73.5x203x40mm
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • AC-Input
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13QEH+

CSE-218HTS-R3K2AWP
1

1
Super X13QEH+ Motherboard

2U Chassis
Backplane BPN-NVME5-HS219N-S24 1 NVMe Gen5 24-slot direct-attached backplane, support NVMe Gen5/SAS4/SAS3/SATA HDD/SSDs.,RoHS
Cable CBL-CDAT-0716 2 4 Pin to 4 Pin I2C cable for JBOD chassis, 25cm, 26AWG
CBL-MCIO-1215M5RR 1 [NR]MCIO x8 (RA to RA),15CM,85ohm,RoHS
CBL-MCIO-1223M5RR 4 [NR] MCIO x8 (RA to RA),23cm,30AWG,G5,RoHS
CBL-PWEX-1141-40 2 MicroHi (2x4 to 2x4), PH3.0, 40CM, 10.5A/p, 16AWG, RoHS
CBL-SAST-1286-100 2 Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,
Drive Tray(s) MCP-220-00155-0B 24 Metallic black gen-3 hot-swap tool-less 2.5 HDD tray
Air Shroud MCP-310-21815-0B 2 Mylar front CPU air shroud for X13QEH+ in SC218H2
MCP-310-21816-0B 2 Mylar rear CPU air shroud for X13QEH+ in SC218H2 with 2U HS
MCP-310-21821-0B 8 Mylar memory air shroud for X13QEH+ in SC218H2
Riser Card RSC-D2-666G5 1 2U LHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
RSC-S2R-668G5 1 2U RHS Standard Riser card with two PCIe 5.0 X16 and on
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 Intel Eagle Stream Platform
SNK-P0089P 2 1.5U Passive 45 mm Tall CPU Heat Sink for X13 SYS-241H/E
*Power Supply PWS-1K62A-1R 4 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT418H-DSG 2 Pass through board w 4PWS redundancy input & up to 3600W out
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
