SYS-241H-TNRTTP

Key Applications

  • Artificial Intelligence (AI)
  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

Key Features

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors

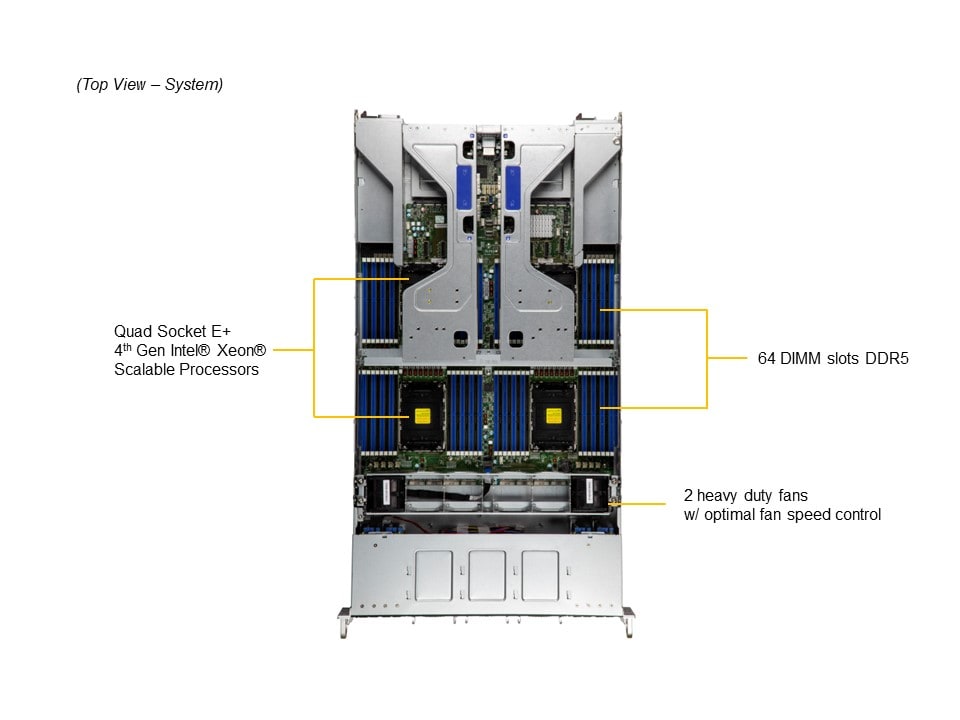

  2. 64 DIMM Slots;
    Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS;
    Up to 24TB with® Optane™ Persistent Memory 300 series

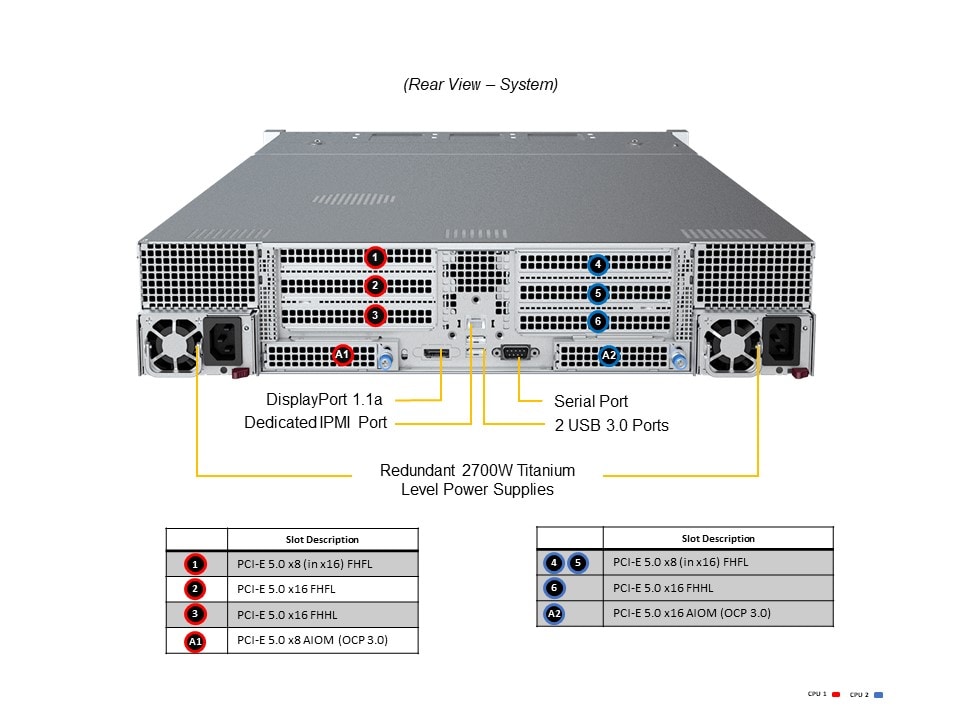

  3. Optional PCIe configurations up to 12 PCIe slots with support for two double-width GPU/Accerlator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

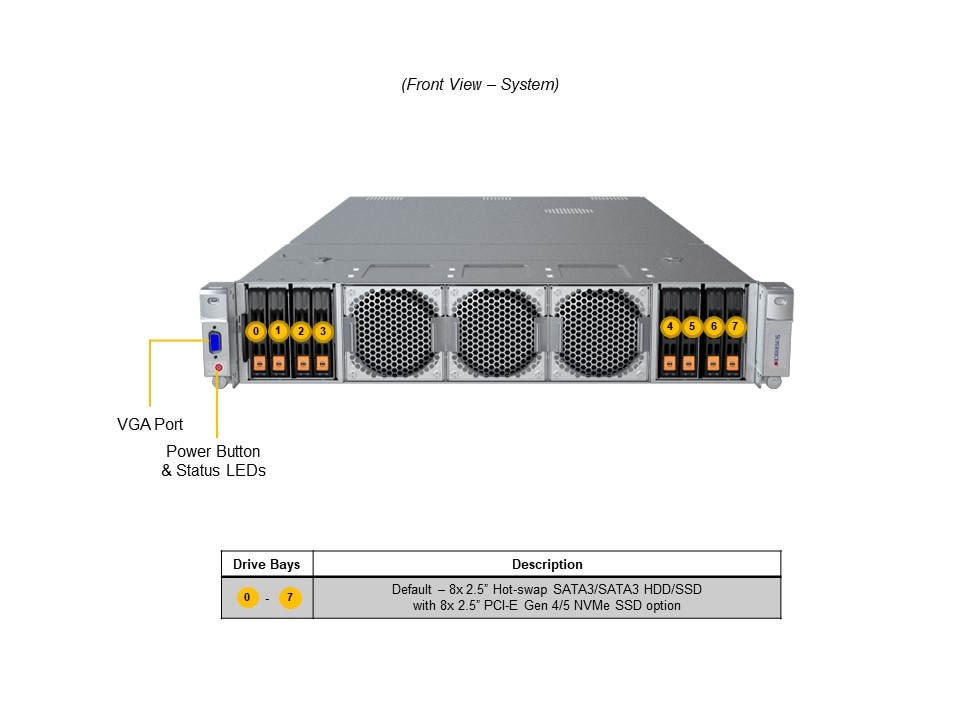

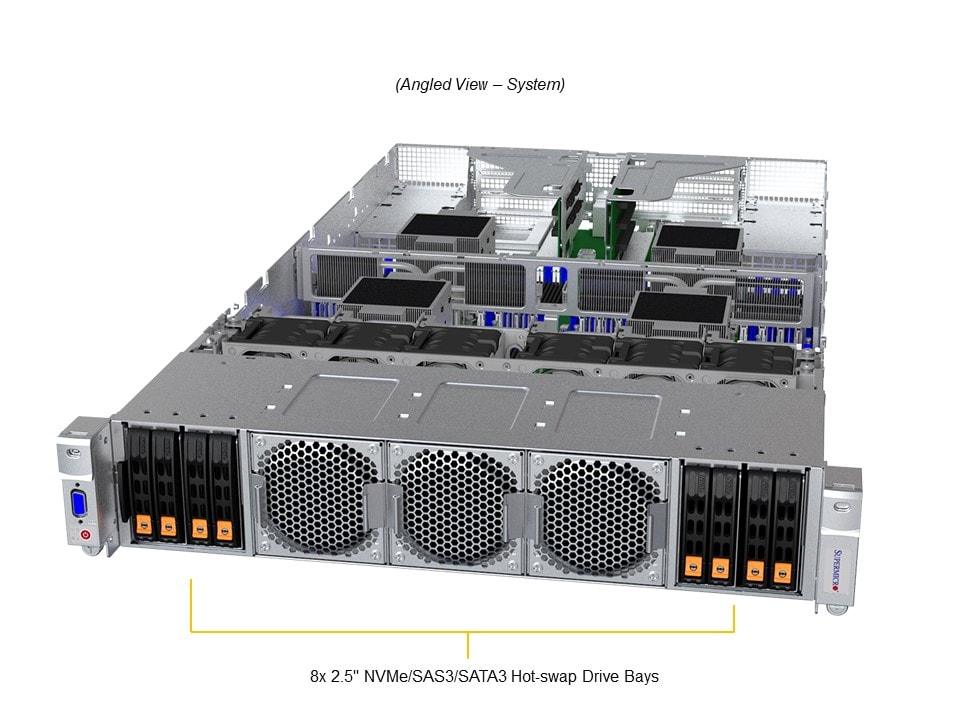

  5. 8x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays);
    2x internal M.2 NVMe/SATA;
    Optional RAID support via storage add-on card
  6. 5 heavy duty fans w/ optimal fan speed control
Specifications
Product SKUs
SuperServer SYS-241H-TNRTTP (Black)
Motherboard
Super X13QEH+
Processor
CPU
Note
  • Supports 165W - 350W TDP CPUs (Aircooled)
  • CPUs with high TDP (air cooled) only supported under specific conditions. Contact Technical Support for details
System Memory
Memory
  • Memory Capacity: 64 DIMM slots
  • Up to 16TB: 64x 256 GB DRAM
  • Up to 24TB: 32x 256 GB DRAM and 32x 512 GB PMem
  • Memory Type: 4800MHz ECC DDR5 RDIMM/RDIMM-3DS
  • Intel® Optane™ persistent memory 300 series
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
  • 1 DisplayPort (s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218H2TS-R2K7AWP
Dimensions and Weight
Height
  • 3.5" (87.9mm)
Width
  • 17.3" (438.4mm)
Depth
  • 32" (812.9mm)
Package
  • 9.75" (H) x 26.5" (W) x 43.5" (D)
Weight
  • Net Weight: 45.5 lbs (20.64 kg)
  • Gross Weight: 71.5 lbs (32.43 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x16 FHHL slot(s)
  • 2 PCIe 4.0/5 x8 LP optional slot(s)
  • 2 PCIe 4.0/5 x16 LP optional slot(s)
  • 1 PCIe 5.0 x16 AIOM slot(s)
  • 1 PCIe 5.0 x8 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 8x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (Default 8x SATA3 drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 2 Heavy duty counter-rotating 6cm Fan(s)
  • 3 Heavy duty counter-rotating 8cm Fan(s)
Power Supply
2700W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 2700W: 200-240Vac / 50-60Hz
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13QEH+

CSE-218H2TS-R2K7AWP
1

1
Super X13QEH+ Motherboard

2U Chassis
Backplane BPN-SAS3-826TQ-B2B 4 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable CBL-MCIO-1215M5RR 1 [NR]MCIO x8 (RA to RA),15CM,85ohm,RoHS
CBL-MCIO-1223M5RR 4 [NR] MCIO x8 (RA to RA),23cm,30AWG,G5,RoHS
CBL-PWEX-0947Y-30 2 MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/p,16AWG,RoH
CBL-SAST-1280QT4S2-100 2 SlimSASx4 STR to 4xSATA w/2SB,80CM,100Ohm,RoHS
CBL-CDAT-0676-66 1 [NR] FRONT CNTL,20 TO 20 PIN,PH0.5, FFC,FLAT,66CM,STD
CBL-CDAT-0681-70 1 [NR] I-PEX,Frnt Ctrl,(2X10F to 2X10F),PH0.5,70CM,40AWG,RoHS
CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWEX-1069 2 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
CBL-PWEX-1252Y-25 3 [NR] FAN,2x4 to 2x 1x4,PH2.54,5A/pin,25CM,22/24AWG,RoHS
Drive Tray(s) MCP-220-00155-0B 8 Metallic black gen-3 hot-swap tool-less 2.5 HDD tray
Air Shroud MCP-310-21815-0B 2 Mylar front CPU air shroud for X13QEH+ in SC218H2
MCP-310-21816-0B 2 Mylar rear CPU air shroud for X13QEH+ in SC218H2 with 2U HS
MCP-310-21821-0B 8 Mylar memory air shroud for X13QEH+ in SC218H2
Riser Card RSC-D2-666G5 1 2U LHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
RSC-S2R-668G5 1 2U RHS Standard Riser card with two PCIe 5.0 X16 and on
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 Intel Eagle Stream Platform
SNK-P0089P 2 1.5U Passive 45 mm Tall CPU Heat Sink for X13 SYS-241H/E
*Power Supply PWS-2K70A-1R 2 2700W, Titanium efficiency, Redundant w/PMBus power supply
*Fan FAN-0219L4 3 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable F
FAN-0237L4 2 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for S
*Front Panel FPB-FP826-TUV 1 Chassis front control board for SC826 with VGA, 2xUSB
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2“ W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
MCP-290-00115-0N 1 Inner rail, quick-release type
MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
