SYS-681E-TR

Key Applications

  • In-Memory Database
  • Virtualization, ERP, CRM
  • Research Lab/National Lab
  • Scale -up HPC

Key Features

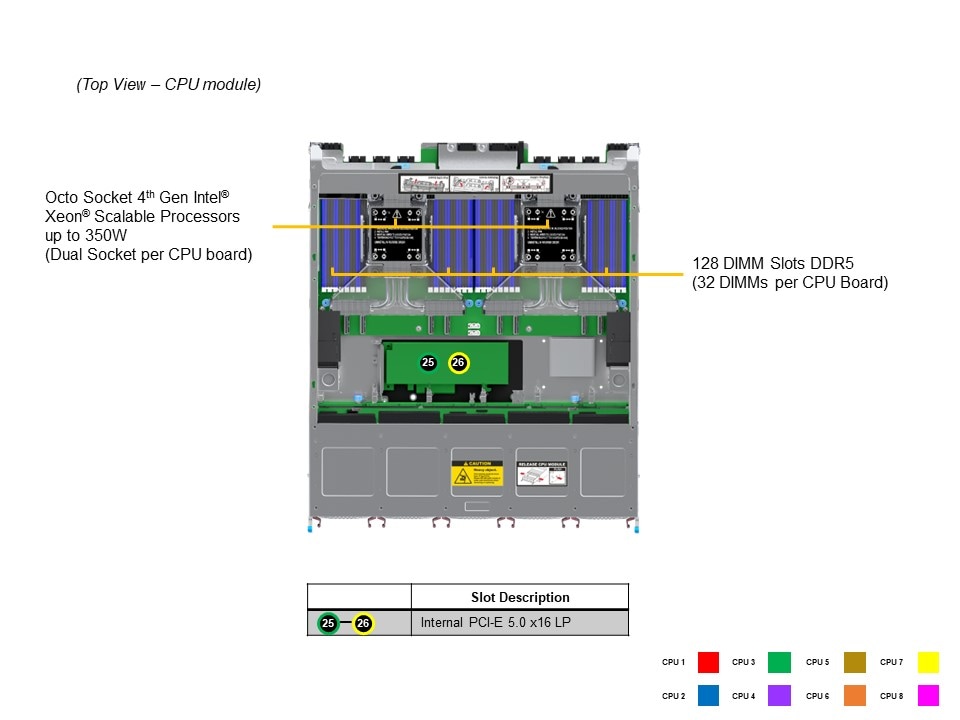

  1. Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 128 DIMM Slots;
    Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS;
    Up to 48TB with® Optane™ Persistent Memory 300 series
  3. Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards

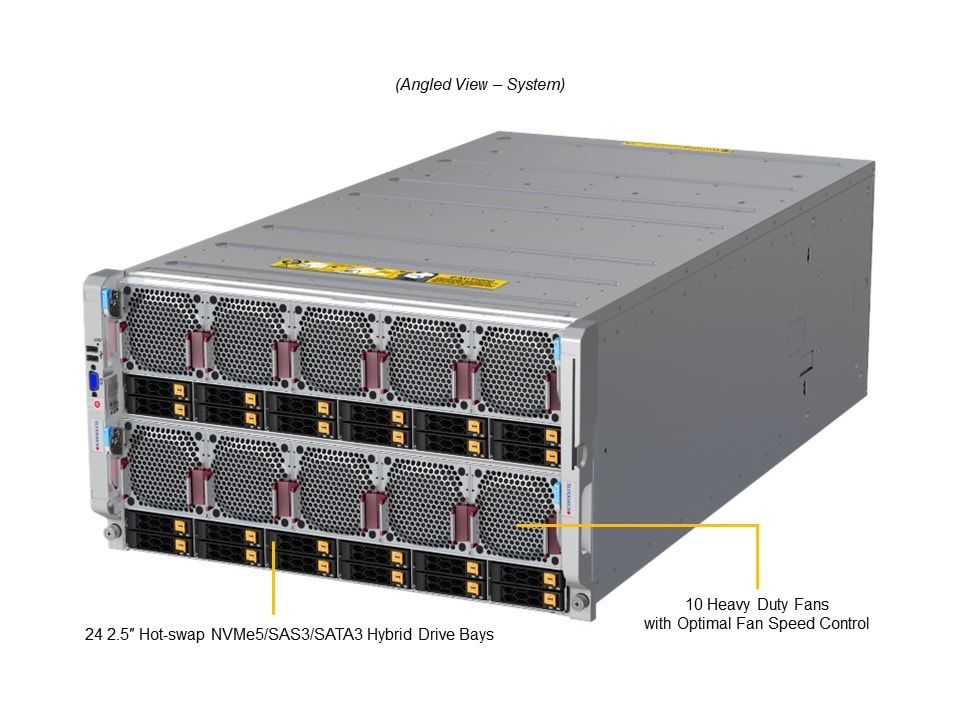

  4. 24x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays ;
    2x internal M.2 NVMe/SATA;
    Optional RAID support via storage add-on card
  5. 10 heavy duty fans w/ optimal fan speed control
Specifications
Product SKUs
SuperServer SYS-681E-TR (Black)
Motherboard
Super X13OEI-CPU
Processor
CPU
Note
  • Supports 205W - 350W TDP CPUs (Aircooled)
  • CPUs with high TDP (air cooled) only supported under specific conditions. Contact Technical Support for details
System Memory
Memory
  • Memory Capacity: 128 DIMM slots
  • Up to 32TB: 128x 256 GB DRAM
  • Up to 48TB: 64x 512 GB PMem and 64x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM/RDIMM-3DS
  • Intel® Optane™ persistent memory 300 series
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 1x 1GbE BaseT
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 1x 1GbE RJ45
USB
  • 2 USB 1.1 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
  • 1 DisplayPort (s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 6U Rackmount
Model
  • CSE-618TS-R5K26P
Dimensions and Weight
Height
  • 10.4" (265mm)
Width
  • 17.68" (449mm)
Depth
  • 33.1" (841mm)
Package
  • 36.3" (H) x 28.34" (W) x 42.5" (D)
Weight
  • Net Weight: 176.37 lbs (80 kg)
  • Gross Weight: 242.5 lbs (110 kg)
Available Color
  • Black

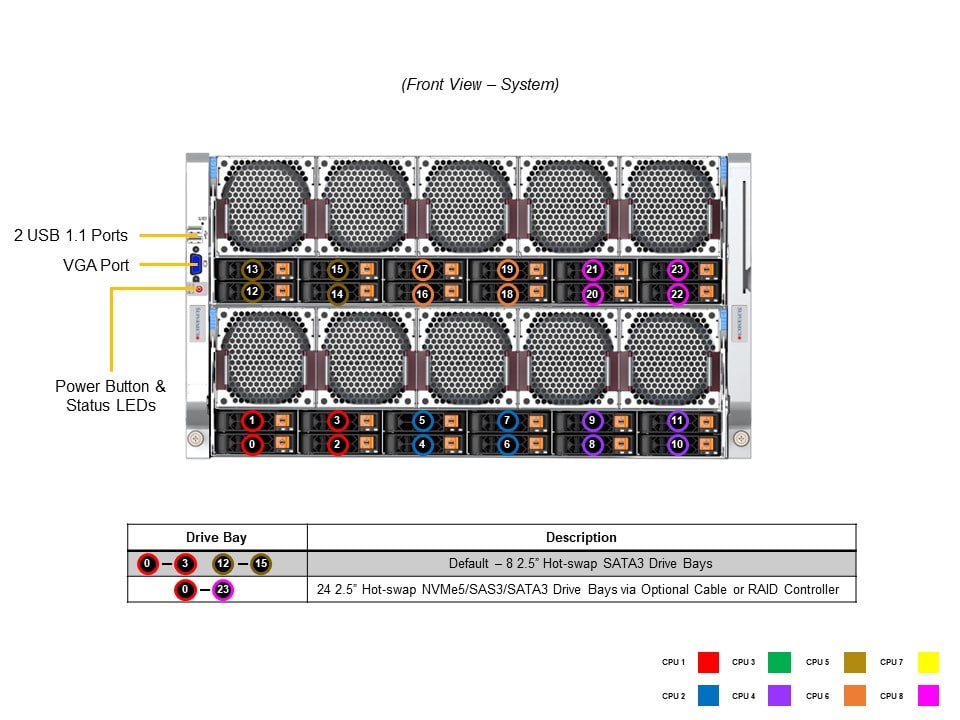

Front Panel
Buttons
  • Power On/Off
  • UID
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

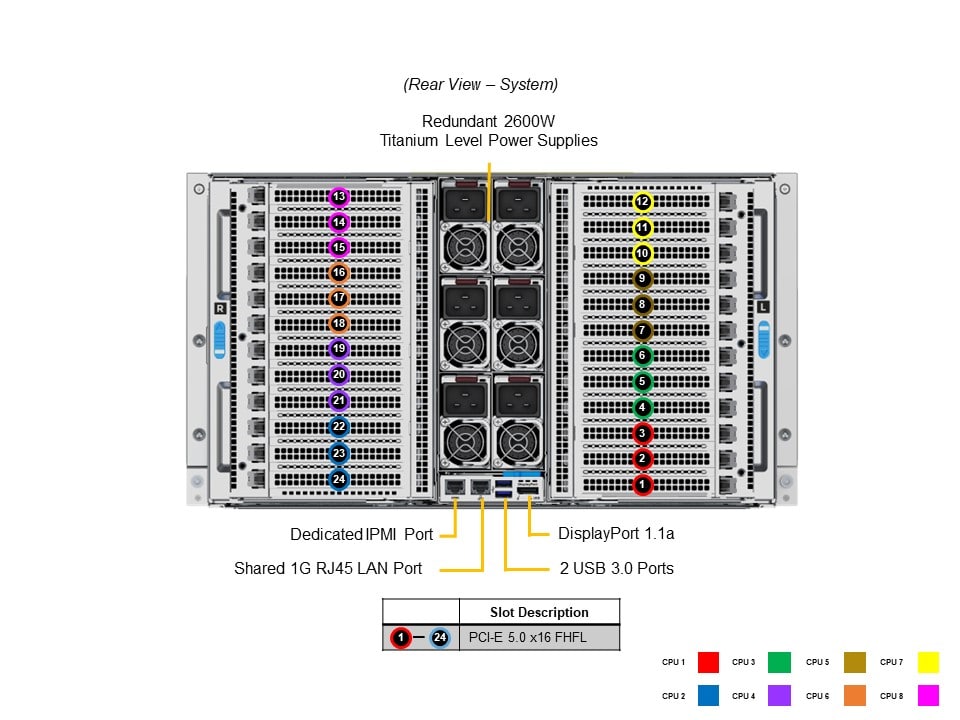

Expansion Slots
PCI-Express (PCIe)
  • 12 PCIe 5.0 x16 FHFL slot(s)
  • 12 PCIe 5.0 x16 FHFL optional slot(s)
  • 2 PCIe 5.0 x16 LP internal optional slot(s)
Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5" NVMe hybrid) (Default 8x SATA3 drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
  • 10 Heavy duty counter-rotating 8cm Fan(s)
Power Supply
1U 2600W redundant power supply
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 2600W: 200-240Vac / 15A Max
DC Input
  • 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13OEI-CPU

CSE-618TS-R5K26P
1

1
Super X13OEI-CPU Motherboard

6U Chassis
Add-on Card / Module AOM-618-FAN-1-P 2 Fan adaptor for CSE-618 chassis,RoHS
AOM-X13OEI-BRF-P 4 AOM-X13OEi-BRF for X13OEi,RoHS
AOM-X13OEI-BRR-P 2 AOM-X13OEi-BRR for X13OEI,RoHS
AOM-X13OEI-MP-P 1 Midplane add on module for X13OEi series MB,RoHS
AOM-X13OEI-PCH-P 1 PCH and BMC add on module for X13OEi series MB,RoHS
AOM-X13OEI-PCIE-P 1 AOM-X13OEi-PCIE adapter card for X13OEi,RoHS
Backplane BPN-NVME5-618N-S12 2 12-Slot Hybrid Backplane for X13 8-Way ONLY,HF,RoHS
Cable CBL-CDAT-0923-40 2 I2C, 1x6F/PH2.0 to 1x6F/PH2.0, 40CM,24AWG,2A/p,RoHS
CBL-EXMX-1203-1 4 4X8 ExaMAX to 2 MCIO 50pin, 38CM,30 AWG,95OHM,RoHS
CBL-EXMX-1203-2 4 4X8 ExaMAX to 2 MCIO 50pin, 34.7CM, 30 AWG, 95OHM,RoHS
CBL-EXMX-1203-3 4 4X8 ExaMAX to 2 MCIO 50pin, 31.4CM, 30 AWG, 95OHM,RoHS
CBL-PWCD-0376-IS 4 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
CBL-PWEX-1137YB-30 2 MicroHi(2x4 to 2x2Y),Ph3.0, 30/30cm,9.5A/p,16AWG,RoHS
CBL-PWEX-1141-40 6 MicroHi (2x4 to 2x4), PH3.0, 40CM, 10.5A/p, 16AWG, RoHS
CBL-SAST-1234A-100 2 SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS
Drive Tray(s) MCP-220-00187-0B 24 2.5 thin profile drive tray, standard color tab, for SC119UH
Air Shroud MCP-310-61801-0N 8 Plastic CPU air shroud for SC618 (X13OEi)
Storage Controller Card SCC-P16S5F-EG5 2 [NR]PCIe x16 Gen5 connector board for X13OEi series,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P2090P 8 1.5U Passive EVAC CPU Heat Sink for SYS-681E-TR
*Power Supply PWS-2K63A-1R 4 1U 2600Wredundant single outpupowersupply with wide range in
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
