AS -2015SV-WTNRT

Key Applications

  • Virtualization
  • Data Center Optimized
  • Firewall Applications
  • Database/Storage
  • Edge/Cloud Computing Services

Key Features

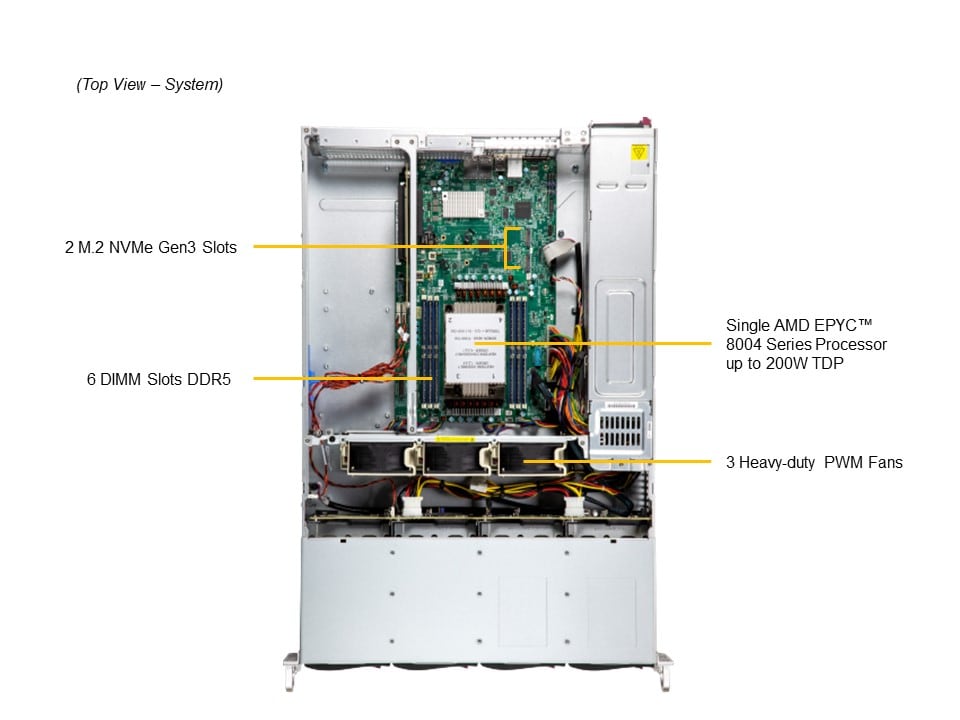

  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
  3. 1x dedicated IPMI LAN, 2x 10GbE BaseT LAN ports via Broadcom BCM57416 Controller

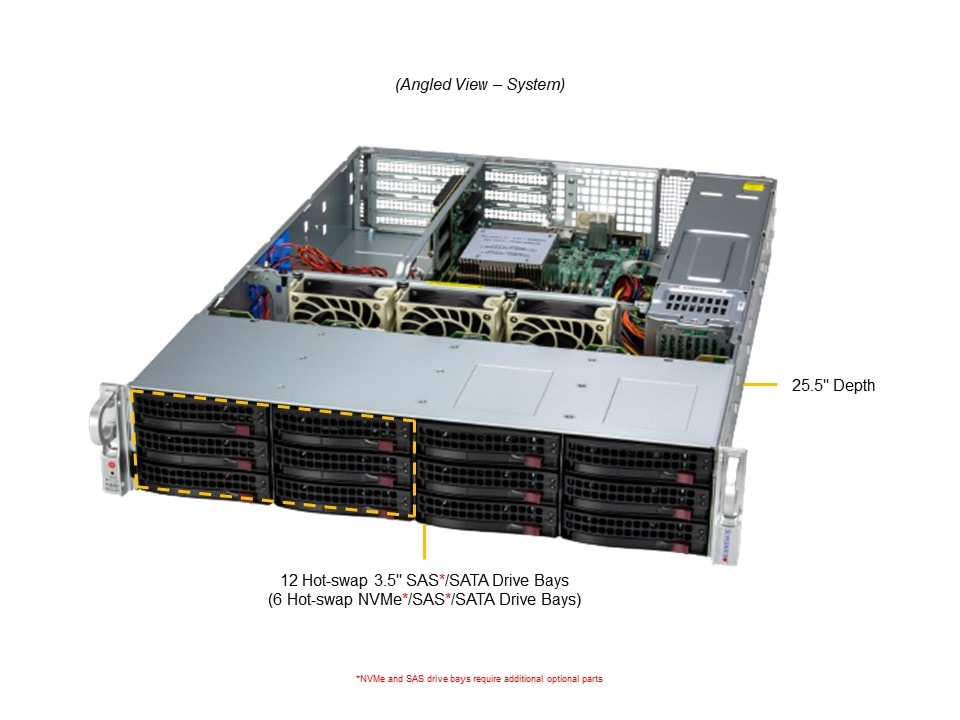

  4. 12 hot-swap 3.5" drive bays support SATA(default)/NVMe/SAS drives or
    6 SATA/NVMe Hybrid with 6 SATA drives
    (Optional cables or SAS controller card for NVMe and SAS drives support)
  5. Dual 800W Redundant Titanium Level Power Supplies
    (Full redundancy based on configuration and application load)
  6. 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
Specifications
Product SKUs
A+ Server AS -2015SV-WTNRT (Black)
Motherboard
Super H13SVW-NT
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
System Memory
Memory
  • Memory Capacity: 6 DIMM slots
  • Up to 576GB: 6x 96 GB DRAM and 6ECC Registered RDIMM, DDR5-4800MHz
  • Memory Type: 4800MHz ECC DDR5 RDIMM
On-Board Devices
NVMe
  • NVMe (optional)
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 2x 10Gb BaseT with Broadcom BCM57416

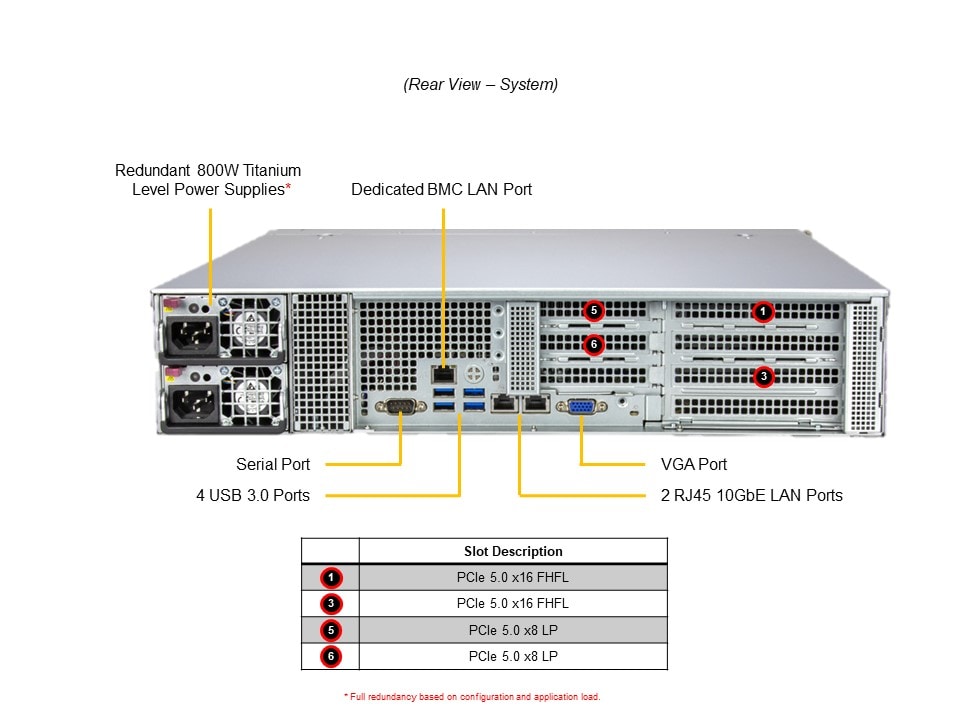

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10 GbE LAN ports
USB
  • 4 USB port(s) (4 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R000WNBP4
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Net Weight: 34 lbs (15.4 kg)
  • Gross Weight: 58 lbs (26.3 kg)
Available Color
  • Black

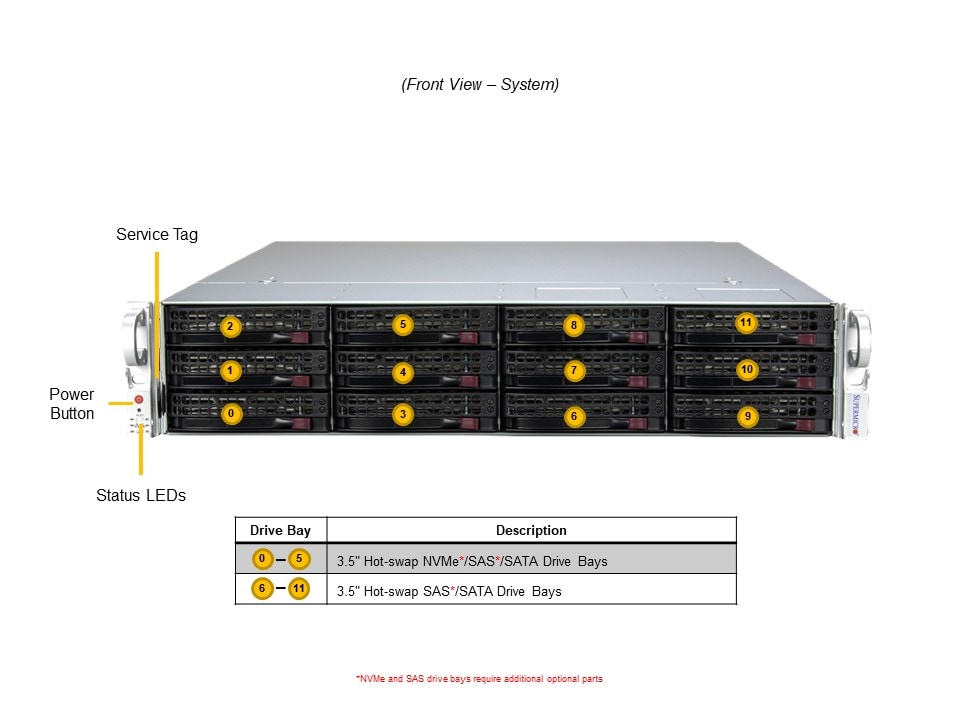

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 2 PCIe 5.0 x8 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 12x 3.5" hot-swap SATA/SAS/NVMe drive bays (6x 3.5" NVMe hybrid)
M.2
  • PCIe 3.0 x4
  • M-key, 2280, 22110
System Cooling
Fans
  • 3 Heavy duty PWM 80x80x38mm Fan(s)
Power Supply
2x 800W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 800W: 100-240Vac / 50-60Hz
  • 800W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66A / Min: 0A (100Vac-240Vac)
  • Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SVW-NT

CSE-826BTS-R000WNBP4
1

1
Super H13SVW-NT Motherboard

2U Chassis
Backplane BPN-NVME5-LA26A-S12 1 2U 12-Slot 3.5
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-MCIO-1227EQS4 1 MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
CBL-MCIO-1243S4Y 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1069 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
Power Supply PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Riser Card RSC-W2-66G5 1 2U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,Ro
RSC-W2R-88G5+ 1 2U RHS WIO Riser card with two PCIe 5.0 X8 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0063P-1 1 2U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Distributor PDB-PT826-S8824 1 PDB with shorter 24pin and 8pin cables for SC826B
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5“ HDD tray
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
*Rear Window MCP-240-82609-0N 1 SC826B, 216B WIO rear window
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2“W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
MCP-410-00007-0N 1 Rail screw bag
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
2.5" to 3.5" Toolless Converter Tray MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
GPU Bracket Kit MCP-240-82517-0N 1 2U bridge BKT support WIO Top-loading Riser BKT
MCP-240-82516-0N 1 SC825B2 WIO rear window for top load RSC bracket
MCP-240-00199-0N 1 2U WIO top load riser card bracket for SC825B2
MCP-120-82504-0N 1 GPU bracket kit for SC825B2 WIO chassis
GPU Power Cable CBL-0424L • 1 GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm
CBL-PWEX-1240 1 GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM
NVMe Cable (Drive Bay 0-1, 2-3, 4-5) CBL-MCIO-1340M5-1 • 3 MCIO x8 (STR to STR), semi-flat, 40cm,32AWG.
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
