SYS-621P-TRT

Key Applications

  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications

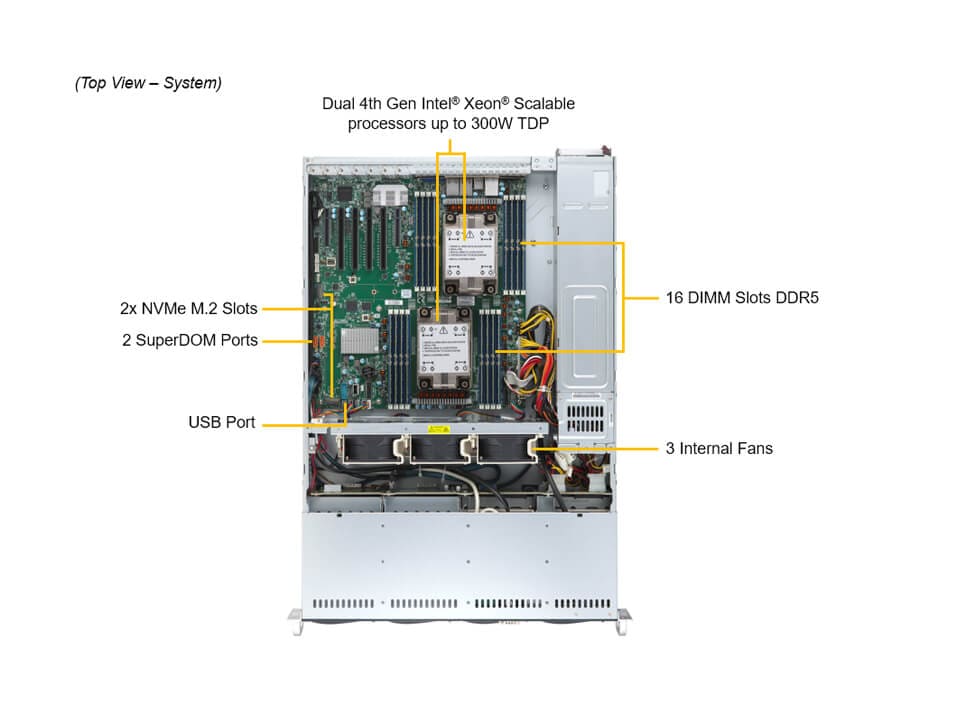

Key Features

  1. Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  4. 1200W Redundant Titanium level Power Supplies
Specifications
Product SKUs
SuperServer SYS-621P-TRT (Black)
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
On-Board Devices
SATA
  • SATA3 (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 4 USB 3.0 port(s) (4 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 front; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (647mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Net Weight: 36.38 lbs (16.5 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Available Color
  • Black

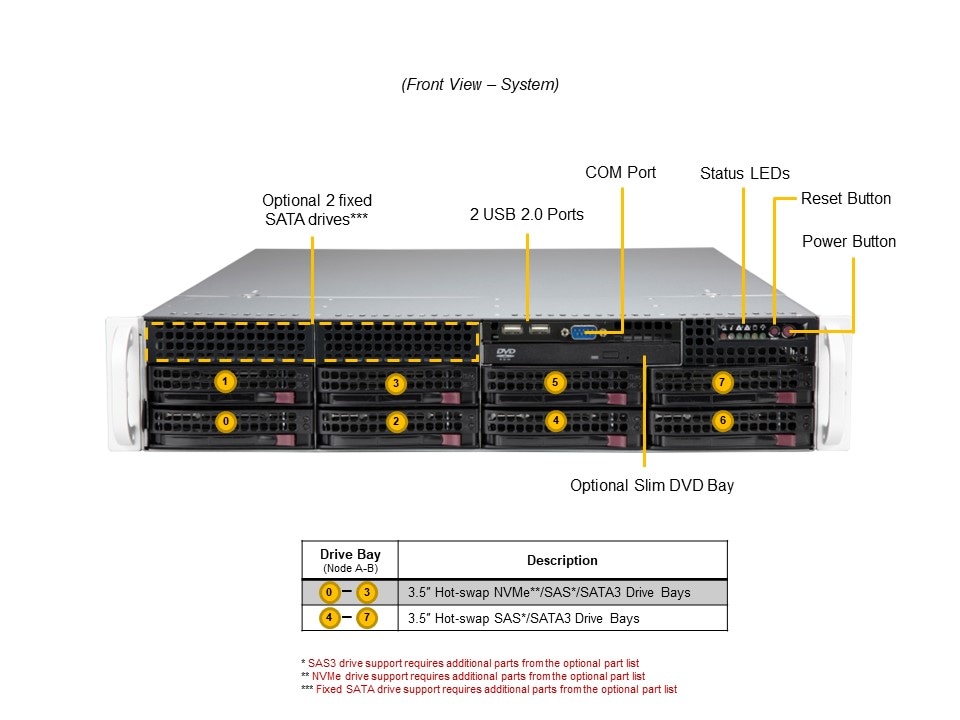

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

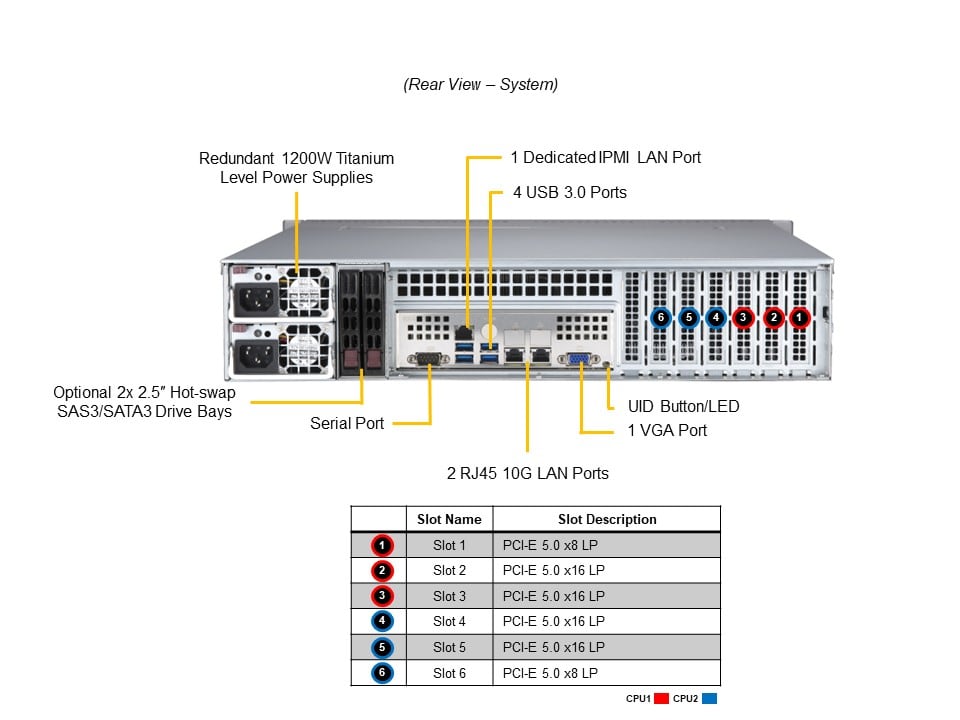

Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 LP slot(s)
  • 4 PCIe 5.0 x16 LP slot(s)

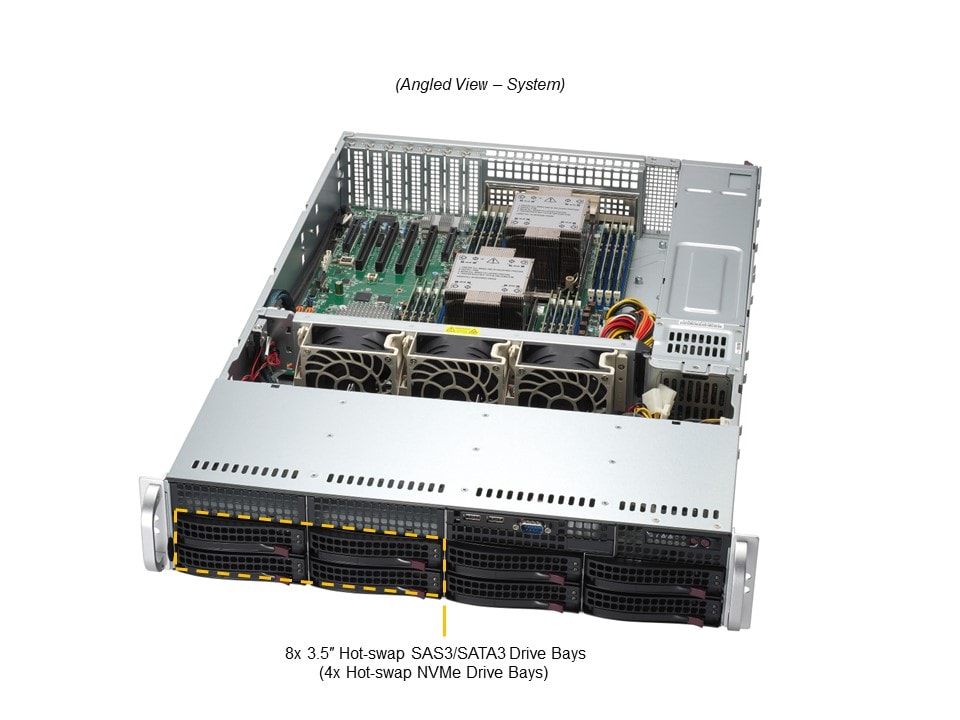

Drive Bays / Storage
Hot-swap
  • 8x 3.5" hot-swap SATA3 drive bays (Configurable option for 8 hot-swap SAS or 4x hot-swap NVMe drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list)
M.2
  • 2 M.2 NVMe
Peripheral Bays
  • 1x slim DVD drive bays (optional)
System Cooling
Fans
  • 3 middle 8cm Fan(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI-T

CSE-825BTS-R1K23LPP1
1

1
Super X13DEI-T Motherboard

2U Chassis
Backplane BPN-SAS4-825A-N4 1 8-Port Hybrid Backplane for 4xSAS4/SATA3 and 4xHybrid Device
Cable CBL-CDAT-0845-48 1 I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHS
CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5“ HDD tray
MCP-220-82502-0B 2 Black fixed 3.5" HDD tray or FDD dummy tray
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
Manual MNL-2567-QRG 1 621P-TR(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT825-S8824 1 SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2“W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Management Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Optional 2x fixed SATA drive Kit 2x CBL-0044L+CBL-0082L+2x MCP-110-82501-0N 1 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional 2U Cable Management Arm Kit 1 x MCP-120-82503-0N+1 x MCP-290-00073-0N • 1 2U Cable Management Arm Kit
Optional 2x Rear hotswap SATA drive Kit 1x MCP-220-82616-0N • 1 The rear MCP-220-82616-0N can only support 2x 2.5 inch SATA drives with related 2x 7pin SATA cable
Optional 3.5 to 2.5 drive tray 1x MCP-220-00043-0N • 1 Black 3.5-to-2.5 drive tray, Red tab (For SATA/SAS),
Optional 8-ports SAS Raid controller kit 1x AOC-S3908L-H8IR-16DD-O 1 Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
Optional CacheVaults Kit 1xBTR-CVPM05+1x MCP-240-00203-0N 1 CacheVault for Broadcom 3908/3916 with Supercap and PCI bracekt
Optional Front Hot-Swap NVMe Kit 1xCBL-MCIO-1260M5+2xMCP-220-00043-0N for 2 U.2 NVMe Drives 1 NVMe Kit for front hot-swap NVMe . Max. 4 NVMe support
Optional Front Slim ODD Kit 1xDVM-TEAC-DVD-SBT5+1x MCP-220-81502-0N • 1 BLACK TEAC SLIM DVD SATA DRIVE
Optional MCC CPU Carrier 1x SKT-1424L-001B-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1B MCC CPU
Optional Trusted Platform Module 1 x AOM-TPM-9670V-S-O 1 SPI Vertical TPM 2.0 0 using SLB9670
Optional XCC CPU Carrier 1x SKT-1333L-0000-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1A XCC CPU
