SYS-741P-TR

Key Applications

  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications

Key Features

  1. Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 full height slot(s), 2 PCIe 5.0 x8 full height slot(s)
  4. 1200W Redundant Titanium level Power Supplies
Specifications
Product SKUs
SuperServer SYS-741P-TR (Black)

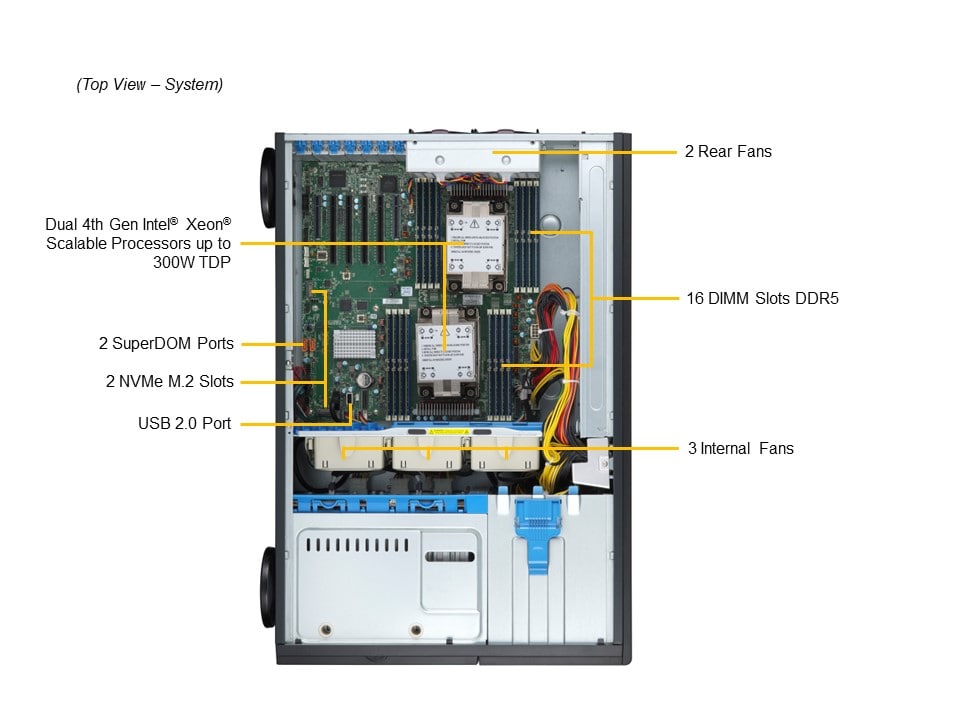

Motherboard
Super X13DEI
Processor
CPU
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
On-Board Devices
SATA
  • SATA3 (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
  • 2x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

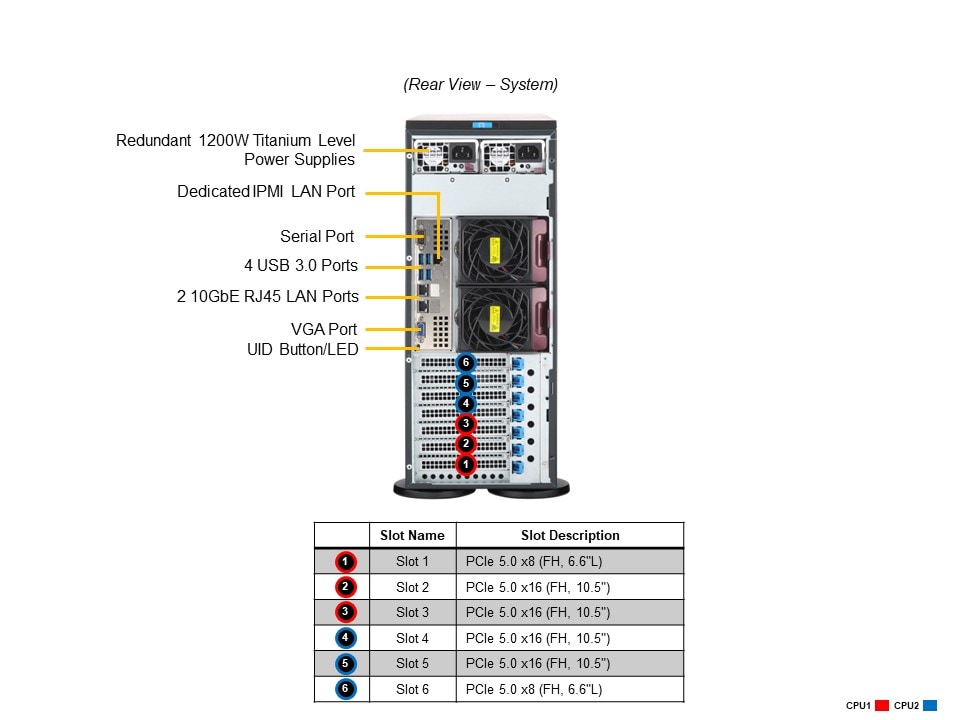

Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 6 USB 3.0 port(s) (2 front; 4 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower/4U
Model
  • CSE-745BTS-R1K23BP
Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7" (178mm)
Depth
  • 25.5" (647mm)
Package
  • 24.6" (H) x 14" (W) x 31.3" (D)
Weight
  • Net Weight: 56 lbs (25.9 kg)
  • Gross Weight: 73.5 lbs (33.9 kg)
Available Color
  • Black

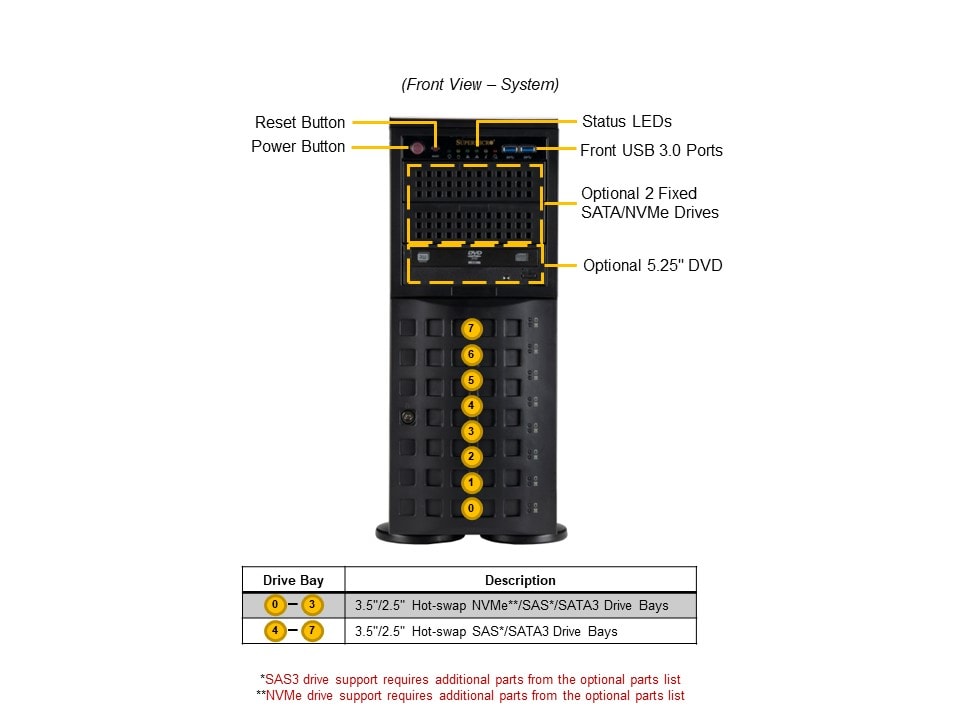

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 Full-height slot(s)
  • 4 PCIe 5.0 x16 Full-height slot(s)

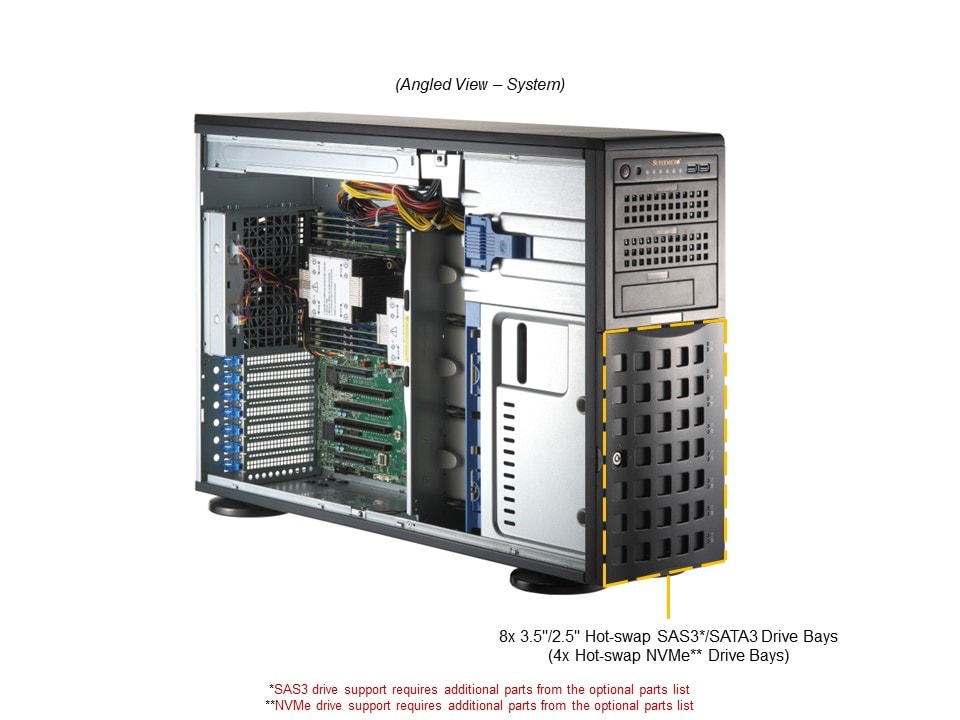

Drive Bays / Storage
Hot-swap
  • 8x 3.5" hot-swap SATA3 drive bays (Configurable option for 8 hot-swap SAS or 4x hot-swap NVMe drive bays. NVMe or SAS support requires additional parts. Please see the Optional Parts list)
M.2
  • 2 M.2 NVMe
Peripheral Bays
  • 3x 5.25" DVD drive bays (optional)
System Cooling
Fans
  • 2 rear Fan(s)
  • 3 middle Fan(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI

CSE-745BTS-R1K23BP
1

1
Super X13DEI Motherboard

Tower/4U Chassis
Backplane BPN-NVME5-745N-S8 1 8-port LFF SAS4/SAS3/SATA3 HDD / NVMe U.2 Gen5 BPN for CSE745/743 Tower,RoHS
Cable CBL-CDAT-0845-48 1 I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHS
CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
CBL-0160L 2 US POWER CORD 16AWG, PB FREE
CBL-0216L 3 4 TO 4 PIN FAN POWER CABLE, 210MM
CBL-0471L 1 USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Manual MNL-2568-QRG 1 741P-TR(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-1K23A-SQ 2 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
*Power Distributor PDB-PT747-4648 1 POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
*Fan FAN-0180L4 2 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
FAN-0182L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
*Drive Tray(s) MCP-220-00193-0N 8 SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
*Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
4U Chassis Rail Kits CSE-PT26L-B • 1 4U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears
Management Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Optional 2x fixed SATA drive Kit 1x MCP-220-00044-0N, 2xCBL-SAST-0624+1*CBL-0082L 1 1x MCP-220-00044-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay
Optional 8-ports SAS Raid controller kit 1x AOC-S3908L-H8IR-16DD-O 1 Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
Optional CacheVaults Kit 1xBTR-CVPM05+1x MCP-240-00203-0N 1 CacheVault for Broadcom 3908/3916 with Supercap and PCI bracekt
Optional Front Hot-Swap NVMe Kit 1xCBL-MCIO-1260M5 for 2 U.2 NVMe Drives 1 NVMe Kit for front hot-swap NVMe . Max. 4 NVMe support
Optional MCC CPU Carrier 1x SKT-1424L-001B-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1B MCC CPU
Optional ODD Kit 1*DVM-TEAC-DVDRW24-HBT+1*CBL-SAST-0624+1*CBL-0082L 1 BLACK DVD SATA DRIVE
Optional Trusted Platform Module 1 x AOM-TPM-9670V-S-O 1 SPI Vertical TPM 2.0 0 using SLB9670
Optional XCC CPU Carrier 1x SKT-1333L-0000-FXC 1 CPU Carrier for Intel Socket-E ( LGA4677) E1A XCC CPU
