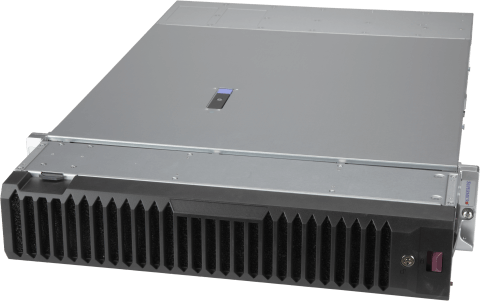

SYS-220HE-FTNRD-NEBS

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  3. 4 PCI-E 4.0 x16 slots with GPU/Accelerator support
  4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
  6. 6 heavy duty hot-swap fans with optimal fan speed control
    Front I/O, tool-less design
  7. 1300W redundant DC power supplies
Specifications
Product SKUs
SYS-220HE-FTNRD-NEBS
  • SuperServer SYS-220HE-FTNRD-NEBS (Silver)

Motherboard


Super X12DHM-6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 4x 1GbE BaseT with Intel® i350-AM4 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

System BIOS
BIOS Type
  • AMI 256MB SPI Flash

Management
Software
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HE211-R000NFP
Note
  • 2U Front Bezel
  • Replaceable UL900-2004 certified air filter
  • Standard sliding rail kit: Post to Post 19.1" ~ 26.4"

Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (436.88mm)
Depth
  • 22.6" (574mm)
Package
  • 9.7" (H) x 23.5" (W) x 36.9" (D)
Weight
  • Net Weight: 34.4 lbs (15.6 kg)
  • Gross Weight: 47.4 lbs (21.5 kg)
Available Color
  • Silver

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power LED
  • Power status
  • System information
  • UID LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 or (Optional) x8 FH, 10.5"L
  • Slot 2: (Optional) PCI-E 4.0 x8 FH, 10.5"L
  • Slot 3: PCI-E 4.0 x16 or (Optional) x8 FH, 10.5"L
  • Slot 4: (Optional) PCI-E 4.0 x8 FH, 10.5"L
  • Slot 5: PCI-E 4.0 x16 or (Optional) x8 FH, 10.5"L
  • Slot 6: (Optional) PCI-E 4.0 x8 FH, 10.5"L
  • Slot 7: PCI-E 4.0 x8 FH, 6.6"L
  • Slot 8: PCI-E 4.0 x8 FH, 6.6"L
Note
  • If Slot 1 is configured as PCI-E x16, Slot 2 will be disabled; If Slot 3 is configured as PCI-E x16, Slot 4 will be disabled; If Slot 5 is configured as PCI-E x16, Slot 6 will be disabled; If Slot 7 is configured as PCI-E x16, Slot 8 will be disabled.

Drive Bays / Storage
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shroud(s)

Power Supply
1300W -48Vdc single output power supply
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
DC Input
  • 1300W
+12V
  • Max: 108.3A
12V SB
  • Max: 2.1A / Min: 0A
Certification

  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       5°C ~ 35°C (41°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Note
  • Operating Relative Humidity: 5% to 85% with excursion of
  • Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F), Short term: -5°C ~ 55°C (23°F ~ 131°F)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DHM-6

CSE-HE211-R000NFP
1

1
Super X12DHM-6 Motherboard

2U Chassis
Add-on Card / Module AOM-AIOM-2X8-P 1 2nd AIOM board (cable solution) for Hyper-E 2U system,RoHS
Add-on Card / Module AOM-HE211-AIOM-P 1 AIOM connection for Hyper-E 2U system,RoHS
Add-on Card / Module AOM-HS119-IO-P 1 Hyper IO Board,RoHS
Backplane BPN-NVME4-HE211N-S6 1 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS
Cable 1 CBL-GNZ4-1221LP-85 1 Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R
Cable 2 CBL-OTHR-1117 1 [NR] 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
Cable 3 CBL-PWEX-1136-40 2 MicroHi,(2X2 to 2X4) P3.0,40CM,10A/pin,16AWG,RoHS
Cable 4 CBL-PWEX-1142-40 1 MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS
Cable 5 CBL-SAST-1218LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85
Cable 6 CBL-SAST-1222LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM,
Cable 7 CBL-SAST-1223LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85
Cable 8 CBL-SAST-1226LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM,
Cable 9 CBL-SAST-1229LP-85 3 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
Cable 10 CBL-SAST-1230LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O
Cable 11 CBL-SAST-1232LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O
Cable 12 CBL-SAST-1243LP-85 1 SlimlineLP x8 (STR to STR),INT,30CM,85 OHM,RoHS
Cable 13 CBL-SAST-1249LP-85 1 SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8
FAN 1 FAN-0215L4 6 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers
Front Bezel MCP-210-21101-0B 1 2U Black Front Bezel with NEBs Filter for HE211 Front Chassi
Power Supply PWS-1K30F-1R 2 1300W -48Vdc single output power supply
Riser Card RSC-H2-6888G4 1 2U LHS Hyper riser card with one PCI-E 4.0 x16 and three PCI
Riser Card RSC-H2-68G4 2 2U LHS Hyper riser card with one PCI-E 4.0 x16 and one PCI-E
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
*Cable 14 CBL-CDAT-1290F 1 [NR] FRONT CNTL,20 TO 20 PIN,P0.5,FLAT,90CM,STD,RoHS
*Cable 15 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*Cable 16 CBL-PWEX-1104-8 1 [NR] 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
*Drive Tray(s) MCP-220-00178-0B 6 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Drive Tray Label LBL-0968 - Pack of 4 "NVMe" labels for hot-swap drive tray
Global Services & Support OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
Intel® VROC RAID Key Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9671V-O 1 SPI capable vertical TPM 1.2
AOM-TPM-9670V-O 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V-S-FIPS-O 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS
NEBS Qualified Parts List
  Part Number Qty Description
Add on Cards AOC-E810-XXVDA4 1 Intel E810-XXVDA4 PCIe 4-port 25GbE SFP28 Gen4x16, RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-STGF-I2S 1 Std LP 2-port 10G SFP+, Intel X710
AOC-A100G-B2CM 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS
AOC-STG-I4T 1 PCI-E Low Profile form factor, Quad 10GBase-T Ports (RJ45),
AOC-STG-I4S 1 Standard LP 4-port 10G SFP+
AOC-S3908L-H8IR-16DD 1 Boardcom 3908L SAS controller
GPU-NVTA100-40-PS 1 NVIDIA A100 40GB CoWoS HBM2 PCIe 4.0-- Passive Cool
CPU P4X-ICX6338T-SRKXF 2 ICX 6338T 2P 24C/48T 2.1G 36M 11.2GT 165W 4189 M1
Memory MEM-DR432L-HL03-ER32 • 4 Hynix 32GB DDR4-3200 ECC RDIMM
MEM-DR464L-HL02-ER32 • 4 Hynix 64GB DDR4-3200 ECC RDIMM
MEM-DR432L-CL05-ER32 • 4 Micron 32GB DDR4-3200 ECC RDIMM
MEM-DR464L-CL03-ER32 • 4 Micron 64GB DDR4-3200 ECC RDIMM
MEM-DR432L-SL02-ER32 • 4 Samsung 32GB DDR4-3200 ECC RDIMM
MEM-DR416L-CL06-ER32 • 4 Micron 16GB DDR4-3200 ECC RDIMM
MEM-DR464L-SL01-ER32 • 4 Samsung 64GB DDR4-3200 ECC RDIMM
MEM-DR416L-SL02-ER32 • 4 Samsung 16GB DDR4-3200 ECC RDIMM
Storage HDS-SUN1-MZQLB960HAJR07 1 Samsung PM983 960GB NVMe PCIe3x4 V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-SMN1-MZ1LB960HAJQ07 1 Samsung PM983 960GB NVMe PCIe3x4 V4 M.2 22x110mm (1.3 DWPD)
HDS-M2T-MTFDDAK960TDS1AW 1 Micron 5300 PRO 960GB, SATA, 2.5", 3D TLC, 1.5DWPD
HDS-IMT0-SSDSCKKB960G8 1 Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm 1DWPD
HDS-S2T1-MZ7LH960HAJR05 1 Samsung PM883 960GB SATA 6Gb/s V4 TLC 2.5" 7mm (1.3 DWPD)
HDS-I2T0-SSDSC2KG480G8 1 Intel D3-S4610 480GB SATA 6Gb/s 3D TLC 2.5" 7mm 3DWPD Rev.2
HDS-SMP-XS800ME70084 1 Seagate 2.5" LangeBP 800GB SAS 12Gb/s,15mm,10DWPD SSD,HF
HDS-IUN0-SSDPE2KE032T8 1 Std LP 2-port 10G SFP+, Intel X710
TPM security module AOM-TPM-9670V-S-P 1 SPI capable vertical TPM 2.0 provisioned for server,RoHS
