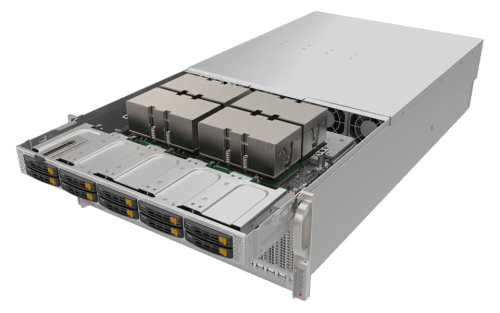

SYS-420GU-TNXR (in 4U)

Key Applications
- High Performance Computing
- AI/Deep Learning Training



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
  4. 4U system with NVIDIA® HGX™ A100 4-GPU
    6 PCI-E Gen 4.0 X16 LP Slots
    Highest GPU communication using NVIDIA® NVLINK™
    Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
  5. Flexible networking options
  6. 1 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
    Up to 10x 2.5" Hot-swap  NVMe/SATA drive bays
  7. 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  8. 4x 3000W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-420GU-TNXR
  • SuperServer SYS-420GU-TNXR (Black Front & Silver Body)

Motherboard


Super X12DGU-P

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

GPU
Supported GPU
  • HGX A100 4-GPU SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X710
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-458GTS-R3K06P

Dimensions and Weight
Height
  • 6.91" (175.6mm)
Width
  • 17.67" (449mm)
Depth
  • 32.79" (833mm)
Package
  • 14.57" (H) x 27.55" (W) x 49.6" (D)
Weight
  • Net Weight: 166 lbs (75.3 kg)
  • Gross Weight: 225 lbs (102.1 kg)
Available Color
  • Black Front & Silver Body

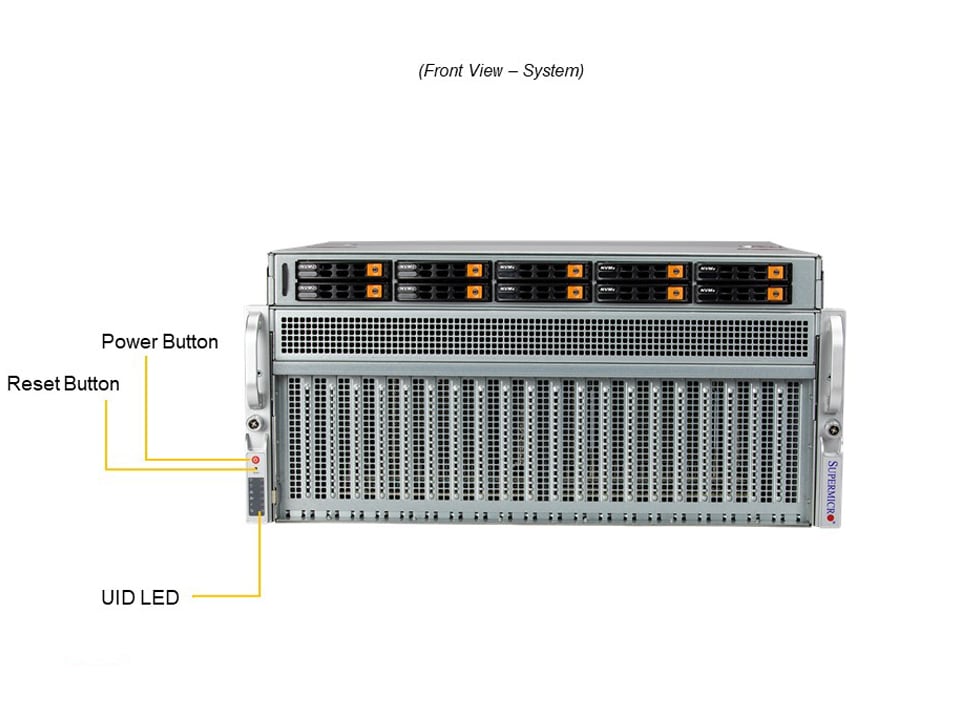

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Hard drive activity LED
  • Information LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

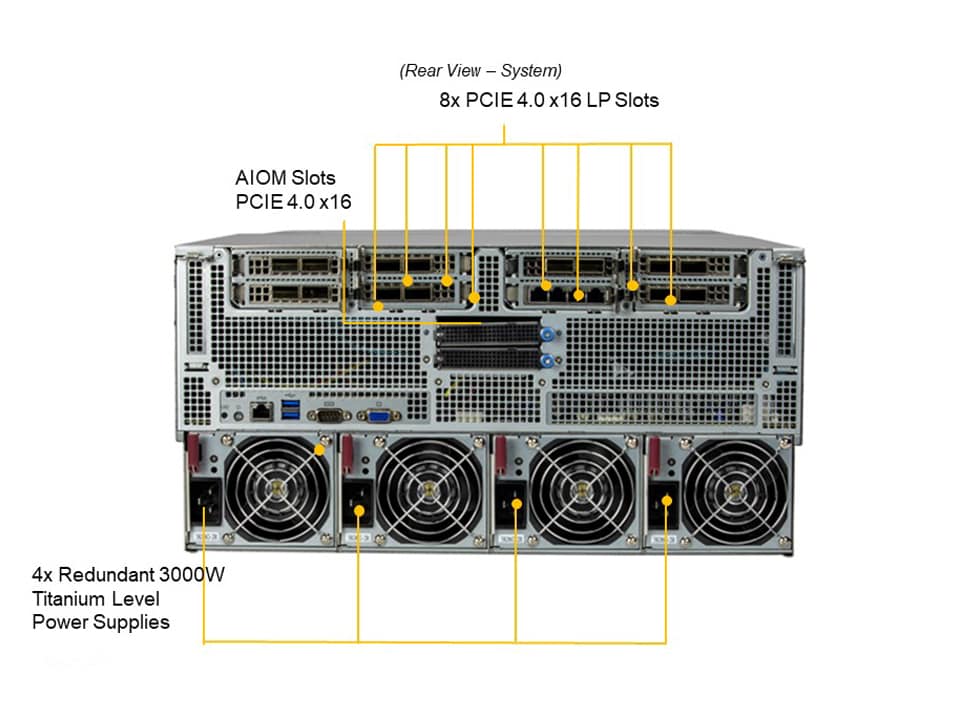

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 LP
  • Slot 5: PCI-E 4.0 x16 LP
  • Slot 7: PCI-E 4.0 x16 LP
  • Slot 8: PCI-E 4.0 x16 LP

Drive Bays / Storage
Hot-swap

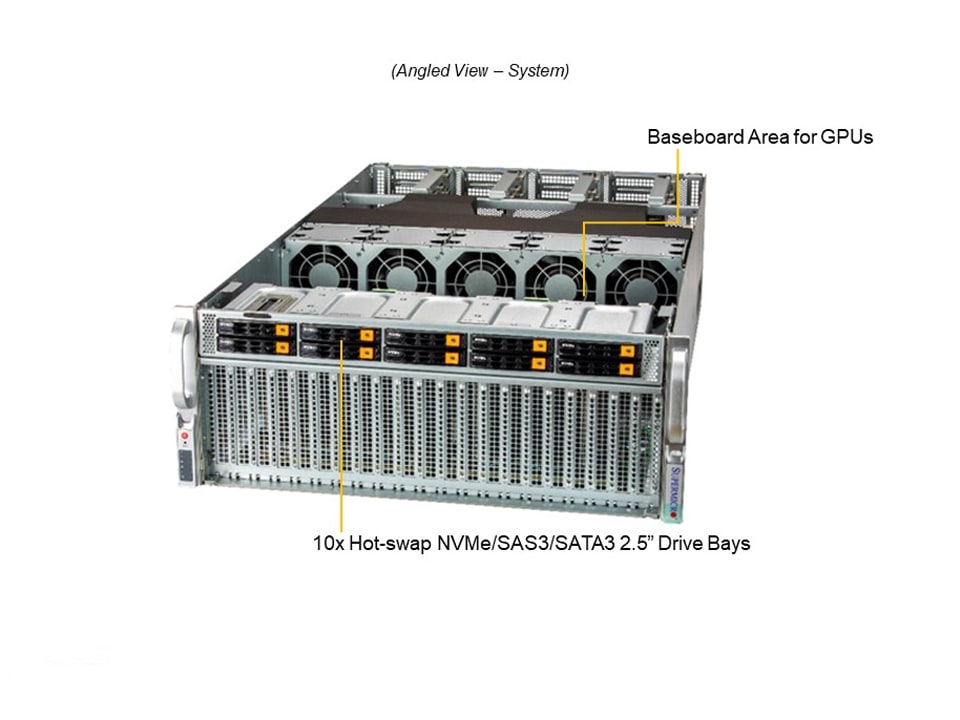

  • 10x 2.5" hot-swap NVMe/SATA drive bays (10x 2.5" NVMe hybrid)
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3

System Cooling
Fans
  • 5 removable heavy-duty Fan(s)

Power Supply
4x 3000W Redundant Power Supplies, Titanium Level
Dimension

(W x H x L)
  • 106.5 x 82.1 x 245.3 mm
Output Type
  • Backplanes (connector)
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DGU-P

CSE-458GTS-R3K06P
1

1
Super X12DGU-P Motherboard

4U Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Cable 1 CBL-0223L 4 BLADE PWS POWER CORD C-19 TO C-20, PBF
Cable 2 CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
Cable 3 CBL-MCIO-1210L5 1 [NR] (MCIO to SlimSASLP) x8,STR,10CM,G5,32AWG,85Ohm
Cable 4 CBL-MCIO-1210L5-J 2 [NR] (MCIO to SlimSASLP) x8,STR,10CM,G5,32AWG,85Ohm
Cable 5 CBL-MCIO-1212L5 1 [NR] (MCIO to SlimSASLP) x8,STR,12CM,G5,32AWG,85Ohm
Cable 6 CBL-MCIO-1242L4E2 1 MCIO x8 (STR) to SlimSASLP x8 (STR),46CM,85Ohm,RoHS
Cable 7 CBL-MCIO-1242L4E3 1 MCIO x8 (STR) to SlimSASLP x8 (STR),43CM,85Ohm,RoHS
Cable 8 CBL-MCIO-1243RL4H1 1 MCIO x8 (RA) to SlimSASLP x8 (STR),43CM,32AWG,RoHS
Cable 9 CBL-MCIO-1243RL4H4 1 MCIO x8 (RA) to SlimSASLP x8 (STR),32CM,32AWG,RoHS
Cable 10 CBL-MCIO-1245RL4B1 1 2 MCIOX8 RA to SlimSASLPX8 STR CBL KIT, for MI-200 RSC3-
Cable 11 CBL-MCIO-1246RL4B1 1 2 MCIOX8 RA to SlimSASLPX8 STR CBL KIT, for MI-200 RSC2
Cable 12 CBL-PWEX-1114-20 4 Microfit,(2X4 to 2X4),PH3.0,20CM,9A/pin,RoHS
Cable 13 CBL-PWEX-1141B-82 1 MicroHi(2x4 to 2x4), PH3.0, 82cm, 10.5A/p, 16AWG, RoHS,
Cable 14 CBL-SAST-1290L4-90-J 4 [NR] SlimSAS (x8 to LP x8),STR, 90CM,90Ohm,RoHS
Cable 15 CBL-SAST-12A0L4-85 1 [NR] SlimSAS (x8 to LP x8),STR,100CM,85Ohm
Cable 16 CBL-SAST-12A0QS3-100 1 [NR] SlimSAS x4 (STR to STR),100CM,100 OHM,RoHS
Cable 17 CBL-SAST-12B0QS3-100 1 [NR] SlimSAS x4 (STR to STR),110CM,100 OHM,RoHS
Air Shroud MCP-310-45801-0B 1 CSE-458G 4U Plastic Air Shroud for H12/X12 MB
Riser Card RSC-G-66G5S 2 1U LHS GPU Riser card with two PCI-E 5.0 X16 slots,HF,Ro
Riser Card RSC-GR-66G5S 2 1U RHS GPU Riser card with two PCI-E 5.0 X16 slots,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-3K06G-2R 4 AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
*Power Distributor PDB-PT458G-48 1 Input 4 powers with 54V and 12V also 12Vsb pass through boar
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
Redstone GPU Kit AOM-PCIE4-SXM4-Q-P  1 PCIe Transition board for nVidia, Redstone, GPU module,RoHS
CBL-PWEX-1096-43  1 Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43
MCP-240-45808-0N 1 Sheet-metal tray for Redstone UBB assembly in SC458G chassis
CBL-SAST-1240L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM
CBL-SAST-1255L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM
CBL-SAST-1275L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM
MCP-310-45805-0B 1 CSE-458G 3pcs mylar air block set for Redstone
CBL-SAST-1290L4F-85 2 [NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM
SNK-P4009P 4 3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
GPU-NVTHGX-A100-SXM4-48 1 NVIDIA RedstoneGPU Baseboard,4 A100 80GB SXM4 (w/o HS)
CBL-PWEX-1117-60 1 MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
- DataCenter Management +A17:D53Package (per node license)
