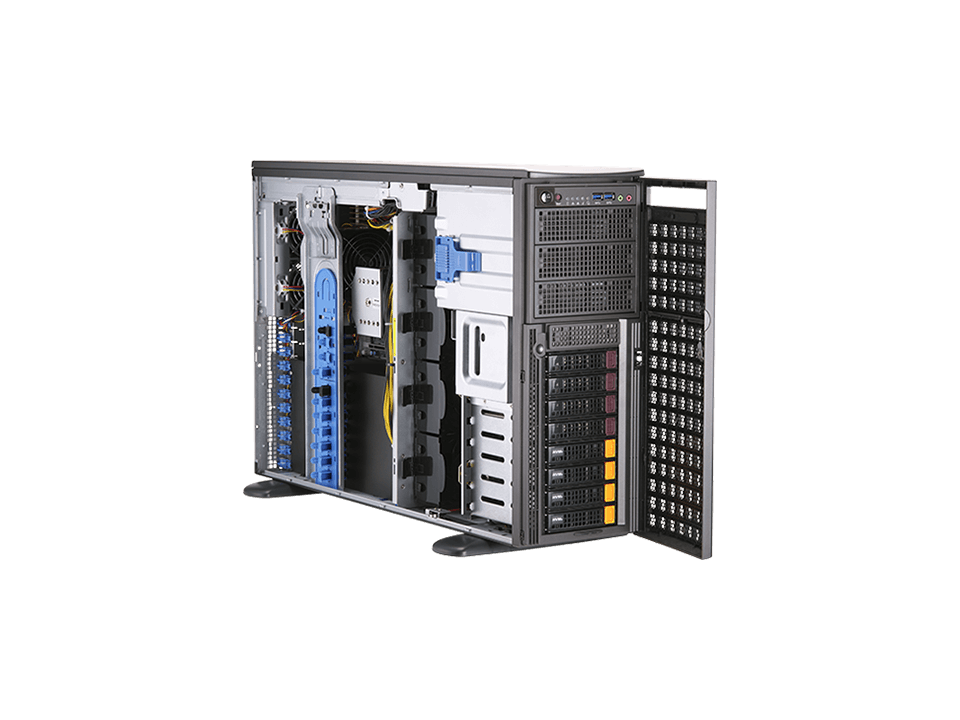

SYS-740GP-TNRT

Key Applications
- Scientific Virtualization
- High Performance Computing
- Rendering
- AI/Deep Learning Training



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMM Slots;
    Up to 4TB DRAM;
    Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. 1 PCI-E 4.0 x8 LP
    4 PCI-E 4.0 x16 (double-width) slots, 2 PCI-E 4.0 x16 (single-width) slots,
  5. 2 M.2 NVMe or SATA for boot drive only
    Total 8x 3.5" Hot-swap drive bays
    Up to 8 NVMe drives (4 NVMe drives supported by default)
  6. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  7. 2x 2200W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-740GP-TNRT
  • SuperServer SYS-740GP-TNRT (black)

Motherboard


Super X12DPG-QT6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

GPU
Supported GPU
  • NVIDIA A100,A40, and RTX A6000
CPU-GPU Interconnect
  • PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCI-E

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Full-Tower
Model
  • CSE-747BTS-R2K20BP

Dimensions and Weight
Height
  • 18.1" (460mm)
Width
  • 7" (178mm)
Depth
  • 26.5" (673mm)
Package
  • 12.7" (H) x 27" (W) x 37.5" (D)
Weight
  • Net Weight: 52.9 lbs (24 kg)
  • Gross Weight: 57 lbs (25.85 kg)
Available Color
  • black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHFL
  • Slot 2: PCI-E 4.0 x16 FHFL
  • Slot 3: PCI-E 4.0 x16 FHFL
  • Slot 4: PCI-E 4.0 x16 FHFL
  • Slot 5: PCI-E 4.0 x16 LP
  • Slot 6: PCI-E 4.0 x16 LP
  • Slot 7: PCI-E 4.0 x8 LP

Drive Bays / Storage
Hot-swap
  • 8x 3.5" hot-swap NVMe/SATA/SAS Support drive bays (10x 2.5" NVMe dedicated)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control

Power Supply
1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 2200W: 200-240Vac / 50-60Hz
DC Input
  • 2090W: 230-240Vdc for CCC only
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 183.3A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPG-QT6

CSE-747BTS-R2K20BP
1

1
Super X12DPG-QT6 Motherboard

Full-Tower Chassis
Backplane BPN-NVME4-747N-S8 1 8-port 3.5" HDD/NVMe backplane for 4U Tower chassis, all 8 ports support NVMe Gen4 / SAS / SATA devices.,RoHS
Cable 1 CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 2 CBL-PWEX-1040 4 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
Cable 3 CBL-SAST-1230-100 2 Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
Cable 4 CBL-SAST-1230-85 2 Slimline x8 (LE) to Slimline x8 (RE),INT,30CM,85 OHm,R
Drive Tray(s) MCP-220-00150-0B 4 NVMe Panetone 159C on Latch
Parts MCP-260-00150-0N 1 STD I/O Shield for X12DPG-QT with EMI Gasket
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0080AP4 2 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
*Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor PDB-PT747-6824 1 Power Distributor Board is for 4U GPU solution using regular
*Cable 5 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Cable 6 CBL-0160L 2 US POWER CORD 16AWG, PB FREE
*Cable 7 CBL-0216L 4 4 TO 4 PIN FAN POWER CABLE, 210MM
*Cable 8 CBL-0286L 2 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
*FAN 1 FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
*FAN 2 Fan-0114L4 2 92x38mm 4-PIN PWM FAN W/ HUS for SC747
*FAN 3 FAN-0138L4 2 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
*Front Bezel MCP-210-74701-0B 1 SC747 plastic front bezel
*Drive Tray(s) MCP-220-00073-0B 3 Black 5.25 drive tray w/o rail (SC747)
*Front Panel MCP-280-74702-0N 1 SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
*Parts MCP-290-74701-0B 1 Black plastic top cover for SC747
*Parts MCP-290-74702-0N 1 GPU Card Holder (11 slots) for SC747TQ, SC842
*Parts MCP-290-74703-0B 1 fixed 3.5" dummy cover for SC747
*Parts MCP-290-74709-0B 1 Plastic feet (2 pcs/set) for 4U tower chassis, black color
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
CacheVaults 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 - LSI Supercap w 8GB CV 24 cable (whole kit) & Supercap mounting bracket for PCI-E location
DVD Kit CBL-0082L • 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
DVM-LITE-DVDRW24-HBT 1 BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
CBL-0044L • 1 SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat
Front Bezel MCP-210-74703-0B 1 Front bezel cover (for 5.25" bay) for rackmount
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
GPU Kit MCP-240-00096-0N - SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
MCP-320-74702-0N-KIT • 1 X11 GPU Kit for passive GPU/Coprocessor support
MCP-120-74703-0N - GPU long offset extender for A100 and MI100
HDD Converter MCP-220-93801-0B • - Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade)
Intel® VROC RAID Key Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Mounting Rails MCP-290-00059-0B • 1 Rail set+handles, quick/quick, optional for 4U 17.2"W tower
Network Card(s) AOC-S25G-m2S - Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset.
AOC-S40G-i2Q - Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports.
AOC-STG-i4T - PCI-E Low Profile form factor, Quad 10GBase-T Ports (RJ45), based on Intel XL710 + X557-AT4.,RoHS
AOC-STG-i4S - Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports.
NVMe Kit CBL-SAST-1263-85 2 LaneRvsl, Slimline x8 (STR) to Slimline x8 LE,60CM,85 O
AOC-SLG4-4E4T 1 4 Port NVMe PCIE Gen4 X16 Retimer,HF
MCP-220-00150-0B • 4 NVMe version of 3.5" HDD Tray (Convert 3.5" to 2.5" for 747/936/938)
Optional Storage Controller Card + Cable(s) AOC-S3108L-H8iR-16DD & 2x CBL-SAST-1275-100 - Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
AOC-S3008L-L8i & 2x CBL-SAST-1275-100 - Std LP, 8 internal ports, 12Gb/s per port- Gen3, RAID 0,1,10; MINI SAS HD x4 (STR) to Slimline x4 (LE),INT,75CM,100 OH
AOC-S3108L-H8iR & 2x CBL-SAST-1275-100 - Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
- DataCenter Management +A17:D53Package (per node license)
Trusted Platform Module Options AOM-TPM-9670V-S-O 1 SPI capable vertical TPM 2.0 provisioned for server,RoHS
