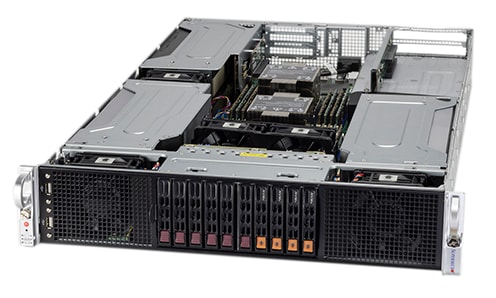

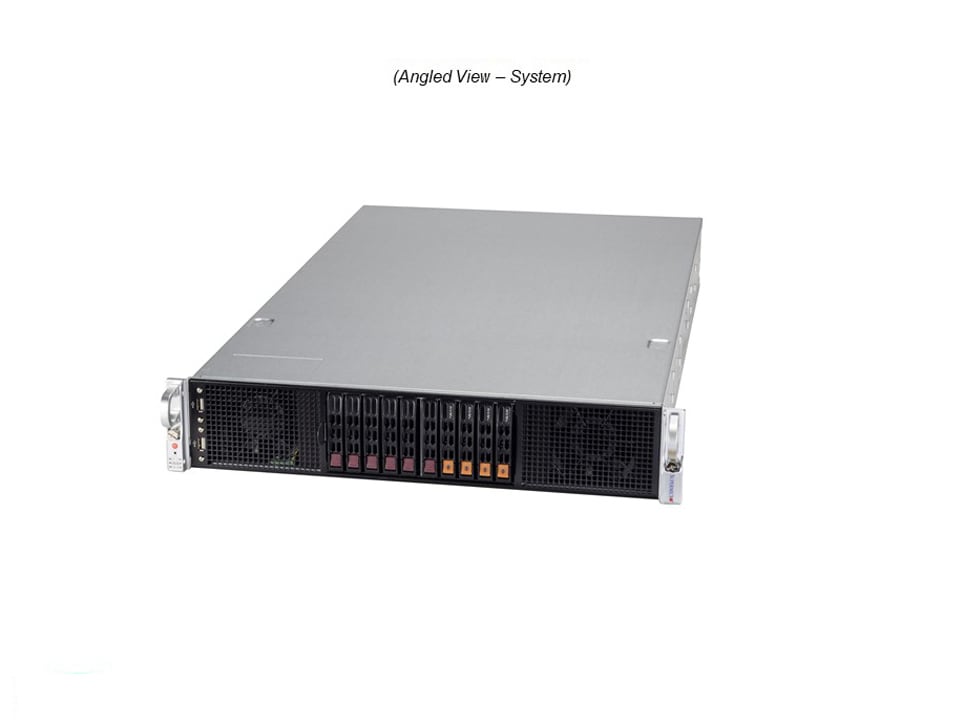

SYS-220GP-TNR

Key Applications
- Scientific Virtualization
- High Performance Computing
- VDI
- AI/Deep Learning Training



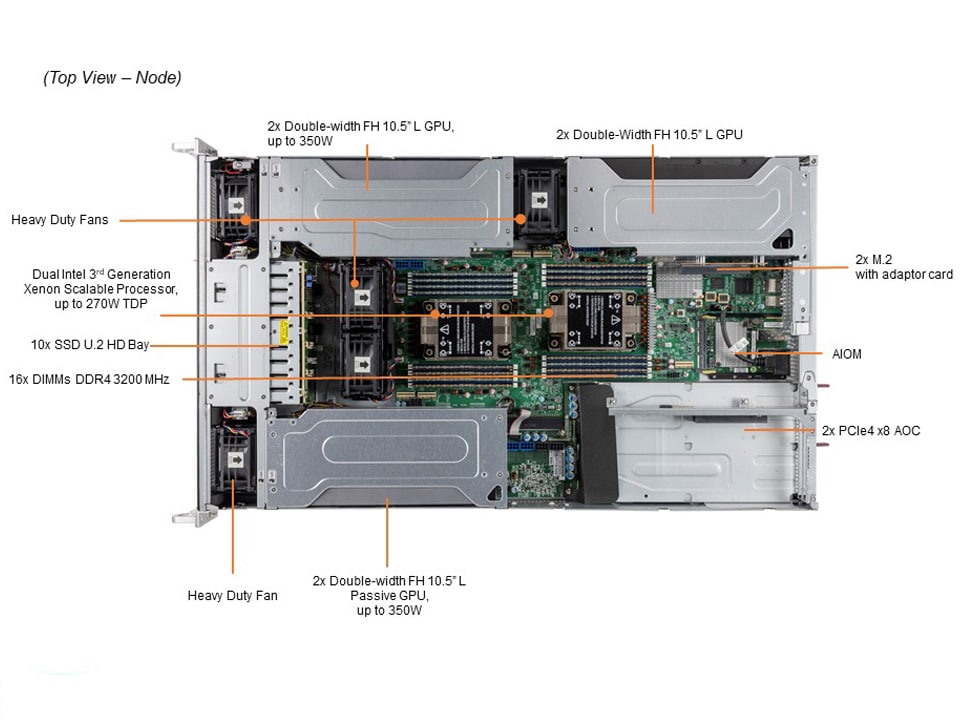

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMM Slots;
    Up to 4TB DRAM;
    Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. 6 PCI-E Gen 4.0 x16 FH, 10.5" L
    Up to 2 PCI-E Gen 4.0 x8 FH
  5. Flexible networking options
  6. 2x M.2 NVMe for boot drive only (with optional expansion card AOC-SLG3-2M2)
    Configuration 1: 8x SATA + 2x NVMe (PCI-E slot 7 + slot 8 enabled)
    Configuration 2: 6x SATA + 4x NVMe (PCI-E slot 7 enabled)
    Configuration 3: 4x SATA + 6x NVMe
    Total 10x 2.5" Hot-swap drive bays, configurable combination of SATA + NVMe with optional cable, up to 6x NVMe
  7. 5 counter rotating fans w/ Optimal Fan Speed Control
  8. 2x 2600W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-220GP-TNR
  • SuperServer SYS-220GP-TNR (Black Front & Silver Body)

Motherboard


Super X12DPG-AR

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

GPU
Supported GPU
  • NVIDIA A16, A30, A40, A100, Quadro RTX. Please refer to Compatible GPU List for details.
  • Offboard VGA supported with A40, A4000, A4500, A5000, and A6000
CPU-GPU Interconnect
  • PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCI-E

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

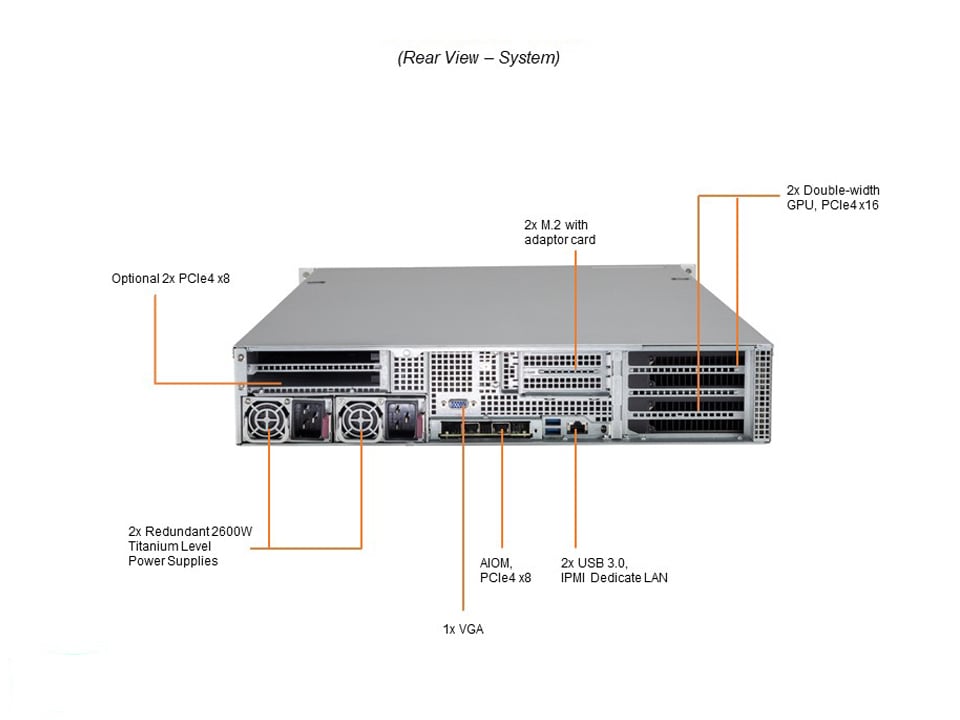

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218GH2TS-R2K63BP

Dimensions and Weight
Height
  • 3.46" (88mm)
Width
  • 17.35" (440.7mm)
Depth
  • 30.18" (766.8mm)
Package
  • 11" (H) x 26.5" (W) x 44.5" (D)
Weight
  • Net Weight: 39.5 lbs (17.9 kg)
  • Gross Weight: 54 lbs (24.5 kg)
Available Color
  • Black Front & Silver Body

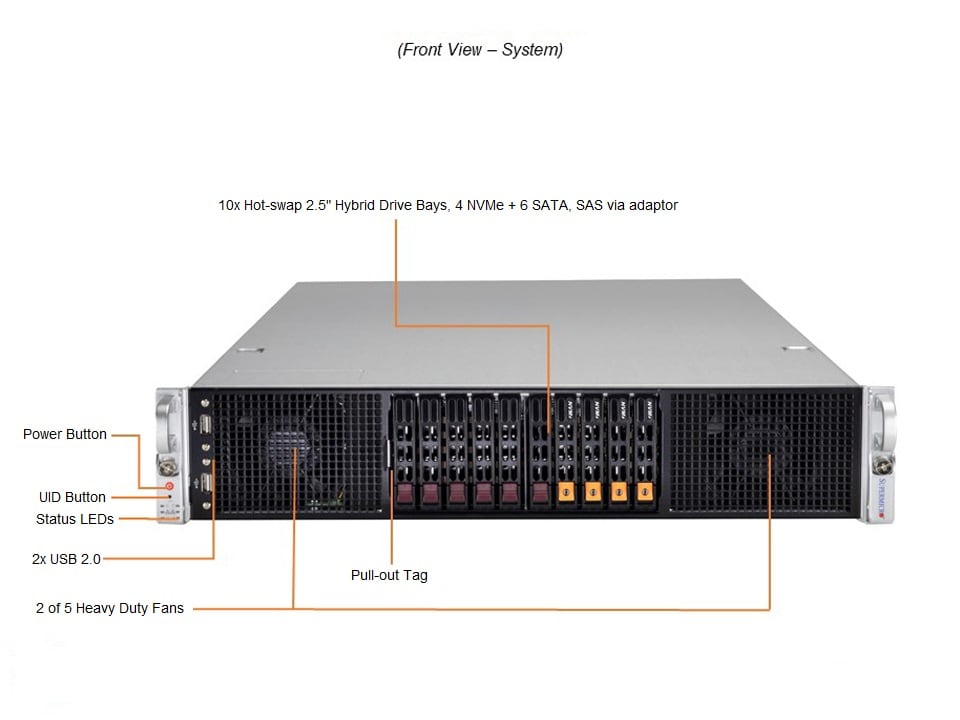

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Hard drive activity LED
  • Information LED
  • Network activity LEDs
  • Power status LED
  • UID LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FH 10.5" L
  • Slot 2: PCI-E 4.0 x16 FH 10.5" L
  • Slot 3: PCI-E 4.0 x16 FH 10.5" L
  • Slot 4: PCI-E 4.0 x16 FH 10.5" L
  • Slot 5: PCI-E 4.0 x16 FH 10.5" L
  • Slot 6: PCI-E 4.0 x16 FH 10.5" L
  • Slot 7: PCI-E 4.0 x8 FHFL
  • Slot 8: PCI-E 4.0 x8 FHFL

Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe dedicated)

System Cooling
Fans
  • 5 heavy duty fans with optimal fan speed control

Power Supply
2600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 2600W: 200-240Vac / 15A Max
DC Input
  • 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPG-AR

CSE-218GH2TS-R2K63BP
1

1
Super X12DPG-AR Motherboard

2U Chassis
Backplane BPN-SAS3-218GH2A-N6 1 2U 10-Slot SFF Backplane Support 8 x SAS3/SATA3 and 6 x NVMe4 Storage Devices,HF,RoHS
Cable 1 CBL-PWEX-1028 6 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 2 CBL-PWEX-1114-30 3 Microfit,PH3.0,(2x4F to 2x4F),30CM,9A/pin,16AWG,RoHS
Cable 3 CBL-SAST-1216LP-85 2 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),16CM,85 OHM,R
Cable 4 CBL-SAST-1224LP-85 2 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
Cable 5 CBL-SAST-1229LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
Cable 6 CBL-SAST-1272-100 2 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM,RoH
Riser Card RSC-G-88G4 1 1U LHS GPU Riser card with two PCI-E 4.0 x8 slots,HF,RoHS
Riser Card RSC-G2B-66G4 1 2U Rear LHS GPU riser cards with two PCI-E 4.0 x16 slots
Riser Card RSC-G2F-66G4 1 2U Front LHS GPU riser card with two PCI-E 4.0 x16 slots
Riser Card RSC-G2FR-66G4 1 2U Front RHS GPU Riser card with two PCI-E 4.0 x16 slots
Riser Card RSC-G2R-8G4 1 2U RHS GPU Riser card with one PCI-E 4.0 x8 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
Heatsink / Retention SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-2K63A-1R 2 1U 2600Wredundant single outpupowersupply with wide range in
*Power Distributor PDB-PT118-DGH 1 Power Distributor Board Support Redundancy1K65 forSC118
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2.5" NVMe Drive Trays MCP-220-00121-0B • 2 Black Gen-3 2.5" NVMe drive tray. Orange tab with lock.
2.5" SATA Drive Trays MCP-220-00047-0B • 2 Black gen 3rd hot-swap 2.5inch HDD tray
GPU Brackets MCP-120-21807-0N 1 NVidia Tesla T4 GPU Bracket Set
MCP-240-21829-0N 1 NVidia A10 GPU Bracket Set
MCP-240-21832-0N 1 NVidia A2 Bracket Set
GPU Cables CBL-PWEX-1017 • 1 PWYCB,GPU,2x4F/CPU to two (2x3F+2x1F)/PCIe,P4.2, 20CM,16/20A
CBL-PWEX-0665 • 1 PCIe 8 Pin Female(Black) to CPU 8 Pin Female(White)
CBL-PWEX-1040 • 1 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
Intel VROC RAID Key AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Network Cards AOC-653106A-ECAT 1 ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
AOC-STG-b2T 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-653105A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
AOC-STG-i4T 1 Std LP 4-port 10G RJ45, Intel XL710+ X557
AOC-MCX556A-ECAT 1 MCX556A-ECAT, CX-5 VPI,EDR IB,100GbE,2p,QSFP28,PCIe3x16
AOC-MCX516A-CCAT 1 Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS
AOC-S25G-i2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
AOC-STGS-I2T 1 Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
Network Cards (AIOM) AOC-ATG-i2T2SM 1 AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
AOC-A100G-M2C-O 1 AIOM 2-Port 100GbE QSFP28, Mellanox CX-6 DX, w/ 1U bracket,RoHS
AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
AOC-ATGC-i2TM 1 AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS
AOC-ATG-I4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T, Intel X550,RoHS
AOC-A25G-b2SM 1 AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-A25G-m2SM 1 AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
NVMe/AOC Cables CBL-SAST-1262LP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM. For 2x NVMe and 6x NVMe configurations.
Rear Fan Kit MCP-320-21809-0N 1 External rear fan mounted over slots 5 and 6 to increase operating ambient temperature with 6x A100, A40, A6000, etc.
Storage Controller Cards and Cables AOC-S3808L-L8IT 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
CBL-SAST-1285-100 (for S3108L) 2 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
CBL-SAST-1264F-100 (for S3808L and S3908L) 1 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM,10
AOC-S3108L-H8iR-16DD 1 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
