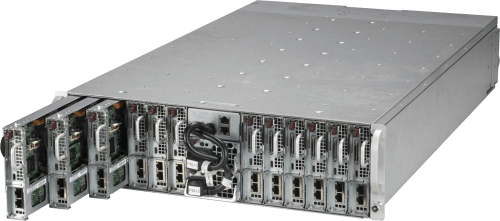

SYS-530MT-H12TRF

Key Applications
- Cloud Computing
- Web Hosting, VM
- Online Game Server Hosting
- IT Infrastructure
- Web Cache
- Social Networking



Key Features

  1. 12 set of Intel® Xeon® E-2300 series and Pentium processor
  2. Intel® C256
  3. 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
  4. 12 set of PCI-E 4.0 x8 Micro-LP slots (MicroLP upgradable)
  5. 12 set of Dual 1GbE LAN Ports
  6. 12 set of 2x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
  7. 4x 8cm Heavy duty fans with optimal cooling zone
  8. 2200W Redundant Titanium Level high-efficiency power supplies with PMBus
Specifications
Product SKUs
SYS-530MT-H12TRF
  • SuperServer SYS-530MT-H12TRF (Black)

Motherboard


Super X12STE-F

Processor (per Node)
CPU
  • Single Socket H5 (LGA 1200,Socket H5 LGA 1200)
  • Intel® Xeon® E-2300 series and Pentium processor,Support Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
  • Support CPU TDP 80-95W
Cores
  • Up to 8C/16T; Up to 16MB Cache

System Memory (per Node)
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128: 4x 32 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 UDIMM

On-Board Devices (per Node)
SATA
  • SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support
Chipset
  • Intel® C256
Network Connectivity
  • No NIC option supported
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)
SATA
  • 2 SATA3 port(s)
LAN
  • 2
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 KVM)
DOM
  • 1 SATA DOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM

Management
Software
  • SSM
  • Intel Node Manager
  • SUM
  • SPM
  • KVM with dedicated LAN
  • Watch Dog
  • SuperDoctor® 5
  • IPMI 2.0
Power Configurations
  • ACPI 6.0 Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-939HN-R2K20BP

Dimensions and Weight
Height
  • 5.21" (132.5mm)
Width
  • 17.5" (444.5mm)
Depth
  • 29.5" (749.3mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 95 lbs (43.09 kg)
  • Gross Weight: 125 lbs (56.7 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
LEDs
  • UID LED

Expansion Slots (per Node)
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x8 MLP

Drive Bays / Storage (per Node)
Drive Bays
  • 2x 3.5" NVMe/SATA drive bays (or 4x 2.5" drives, with 2 NVMe/SATA3 hybrid connectors available)
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3

System Cooling
Fans
  • 4x 9cm heavy duty fans with optimal fan speed control
Air Shroud
  • 12 Air Shroud(s)

Power Supply
2200W Titanium Redundant 1U Power Supplies with PMBus and Reverse Airflow
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 11A-14A / 50-60Hz
  • 2200W: 220-240Vac / 11A-12A / 50-60Hz
+12V
  • Max: 100A / Min: 0A (100Vdc-127Vdc)
  • Max: 183.33A / Min: 0A (220Vdc-240Vdc)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12STE-F

CSE-939HN-R2K20BP
12

1
Super X12STE-F Motherboard

3U Chassis
Add-on Card / Module AOM-BPN-MC12SN-P 12 2x NVMe U.2 + 2 NVMe SATA connectors BPN for MicroCloud 12 node system,HF,RoHS
Add-on Card / Module AOM-CGP-I2M-P 12 AOM-CGP-I2M-O-P
Add-on Card / Module AOM-GEM-001-P 1 [NR]AOM-GEM-001-O-P
Add-on Card / Module AOM-LAN-MC12S-P 1 [NR]AOM-LAN-MC12S-P
Add-on Card / Module AOM-PDB-MC12S-P 12 AOM-PDB-MC12S
Backplane BPN-SAS-939HS 1 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
Cable 2 CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Cable 3 CBL-PWCD-0578-IS 2 PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
Air Shroud MCP-310-93904-0N 12 Mylar air shroud for VLP 4 DIMM (short gap, quick install)
Software SFT-OOB-LIC 12 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0047PSR 12 LP CPU Heat Sink for 12-node Micro Cloud Series Servers
Heatsink / Retention SNK-P0047PSRK 12 Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server
*Power Supply PWS-2K20F-1R 2 1U 2200W Redundant, Titanium,76(W) X 40(H) X 360(L) mm, flow in air
*Power Distributor PDB-PT939-DSG 2 Adapter Board for SC939 special gold finger directly plug to BP.
*Cable 4 CBL-0355L 2 RJ45 C5E 2ft Green With Cover
*Cable 5 CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
*Cable 6 CBL-PWCD-0859 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG
*Cable 7 CBL-PWCD-0860 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG
*FAN 1 FAN-0195L4 4 92x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou
*Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Add-on Card / Module AOM-BPN-MC12S4-P 12 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS
Bracket MCP-240-93912-0N 12 Bracket for 4NVMe MB tray with NVMe standoff
MCP-290-93903-0N-PACK 1 SC939HN bracket with FAN
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
Network Card(s) AOM-C25G-i2SM-12 - MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node
AOM-CIBF-m1M - MicroLP, 1 x 40GbE QSFP, PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR controller
AOM-CTG-i1SM - MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 only
AOM-CTGS-i2TM - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
AOM-C25G-m1SM - MicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox®
AOM-CTG-i2SM-12 - MicroLP 2x 10GbE SFP+, PCI-E 3.0 x8, Intel 82599ES
SATA DOM MEM-IDSAHM3A-128G - SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
MEM-IDSAHM3A-064G - SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal
MEM-IDSAHM3A-032G - SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal
MEM-IDSAHM3A-016G - SATA3 DOM SH 3ME 16GB MLC 1ch Horizontal
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
