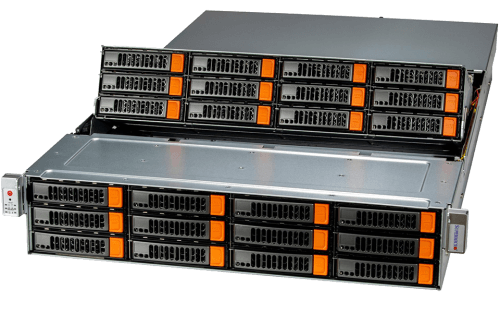

SSG-620P-E1CR24H

Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks



Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCI-E 4.0 x16 Slots
    Dedicated PCI-E 4.0 AIOM slot
  4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  5. 24 3.5" Hot-swap SAS3/SATA3 drives, 4x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
  6. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  7. 1600W Redundant Power Supplies Titanium Level (96%)
  8. HW RAID support via Broadcom® 3908
Specifications
Product SKUs
SSG-620P-E1CR24H
  • SuperServer SSG-620P-E1CR24H (Silver)

Motherboard


Super X12DSC-A6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 120-205W
Cores
  • Up to 38C/96T; Up to 57MB Cache

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826STS-R1K62P1

Dimensions and Weight
Height
  • 3.5"
Width
  • 17.2"
Depth
  • 34"
Package
  • 12" (H) x 29" (W) x 52" (D)
Weight
  • Net Weight: 52 lbs (23.59 kg)
  • Gross Weight: 74.5 lbs (33.79 kg)
Available Color
  • Silver

Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

Expansion Slots
PCI-Express (PCI-E)
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 LP
  • Slot 4: PCI-E 4.0 x16 AIOM

Drive Bays / Storage
Hot-swap
  • 24x 3.5" hot-swap SATA3/SAS2 drive bays
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)

Power Supply
1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • AC-Input
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DSC-A6

CSE-826STS-R1K62P1
1

1
Super X12DSC-A6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3908L-H8IR-32DD-P 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
Backplane BPN-SAS3-826SEL1-N4 2 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-0296L 2 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable 2 CBL-PWEX-0702 1 8 Pin Female to RA(Right Angle) Big 4 Pin Female Power, 32cm
Cable 3 CBL-SAST-0836 2 MINI SAS HD,INT,48CM,32AWG w/oSB
Cable 4 CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT226S-3824 1 2U Simply double PDB support redundant power 2.6KW for CS226
*Cable 5 CBL-0459L 2 AC Power Cord Latch Clamp
*Cable 6 CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
*Cable 7 CBL-PWEX-0901 2 BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
*Cable 8 CBL-PWEX-0903 2 BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,72CM,18AWG,For CSE-226STS-R1K62P1 only
*Cable 9 CBL-PWEX-1042-05 2 [NR]GPU,(2x4F to 2x4F),P4.2,5CM,16AWG,10A/pin,RoHS
*FAN 1 FAN-0154L4 2 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*FAN 2 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
*Drive Tray(s) MCP-220-00133-0B 24 Black gen 8 hot-swap 3.5" HDD tray
*Rear Window MCP-240-82620-0N 1 SC826S2 rear window w/ 3x LP and 1x AIOM slots for X12DSC
*Rail Set MCP-290-00168-0N 1 Cable Management Arm, 1U height, 7.5 deep cable arm
*Drive Tray(s) MCP-290-82607-0N 2 826B/216B rear dummy cover for 2 X 2.5
*Air Shroud MCP-310-82615-0B 1 1U air shroud set for CSE-826S2 to support X12DSC-A6
*Air Shroud MCP-310-82616-0B 1 1U air shroud for CSE-826S2 to support rear drive kits
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Converter Tray MCP-220-00140-0B • - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Network Cards AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
NVMe Kit (1-2 NVMe Drive Support) MCP-220-82620-0N 1 NVMe cage, includes BPN and drive trays
CBL-SAST-1244-85 1 Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
CBL-PWEX-0702 1 Power Cable
CBL-PWEX-1276 1 Power Cable
NVMe Kit (3-4 NVMe Drive Support) CBL-PWEX-0702 1 Power Cable
CBL-PWEX-1276 2 Power Cable
MCP-220-82620-0N 2 NVMe cage, includes BPN and drive trays
CBL-SAST-1267-85 1 Slimline x8 to Slimline x8 Cable, 67 CM - used for 2nd NVMe cage
CBL-SAST-1244-85 1 Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
Power Cord CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Short Rail MCP-290-11808-0N - Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
SuperCap Kit BTR-CV3908-FT1 1 LSI 3908 CacheVault kit for Fat Twin w/ 24in extension cable
TPM Module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
