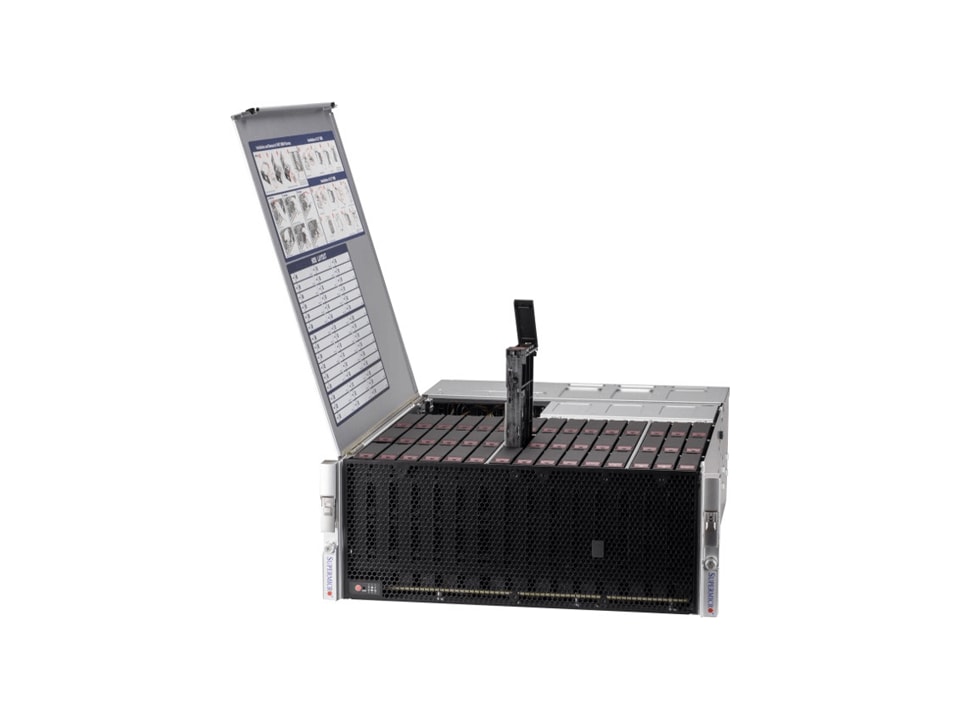

SSG-540P-E1CTR45L

Key Applications
- Database Applications
- Backup Storage, Cold Storage
- Data Warehousing, Archiving



Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 45x Top-loading hot-swap 3.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
  6. Redundant Platinum 1600W Power Supply
Specifications
Product SKUs
SSG-540P-E1CTR45L
  • SuperServer SSG-540P-E1CTR45L (Black)

Motherboard


Super X12SPI-TF

Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 270W

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes

On-Board Devices
SATA
  • SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS
  • SAS3 (12Gbps) via Broadcom 3808 (IT mode)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T LAN ports
USB
  • 4 USB 2.0 port(s) (2 headers; 2 rear)
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946LTS-R1K66P1

Dimensions and Weight
Height
  • 7" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 26" (660mm)
Package
  • 22" (H) x 28" (W) x 42" (D)
Weight
  • Net Weight: 85 lbs (38.56 kg)
  • Gross Weight: 120 lbs (54.43 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 2: PCI-E 4.0 x8 LP
  • Slot 4: PCI-E 4.0 x16 LP
  • Slot 6: PCI-E 4.0 x16 LP
  • Slot 7: PCI-E 4.0 x8 LP

Drive Bays / Storage
Hot-swap
  • 45x 3.5" hot-swap SATA/SAS drive bays
M.2
  • 1x PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-key
Peripheral Bays
  • 2x 2.5" SATA drive bays

System Cooling
Fans
  • 5x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)

Power Supply
AC 1600W, Platinum Level, Redundant Power Supply 73.5mm width,RoHS/REACH,PBF
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
Output Type
  • Gold Finger
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPI-TF

CSE-946LTS-R1K66P1
1

1
Super X12SPI-TF Motherboard

4U Chassis
Add-on Card / Module AOC-S3808L-L8IT-P 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-946LEL1 1 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-CDAT-0674 1 4 Pin to 4 Pin I2C Cable, 30cm, 26AWG, 4 Wires, Pinout 1-1
Cable 2 CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Cable 3 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
Cable 4 CBL-PWEX-1024 1 Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS
Cable 5 CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K66P-1R 2 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
*Power Distributor PDB-PT946S-L824 1 4U PDB support over 2KW for SC946S and 45bay system.,RoHS
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82619-0N + 1x CBL-SAST-1264-85 + 1x CBL-0234L • 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N •+ 1x CBL-SAST-0699 • + 1x CBL-0234L • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
TPM AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
