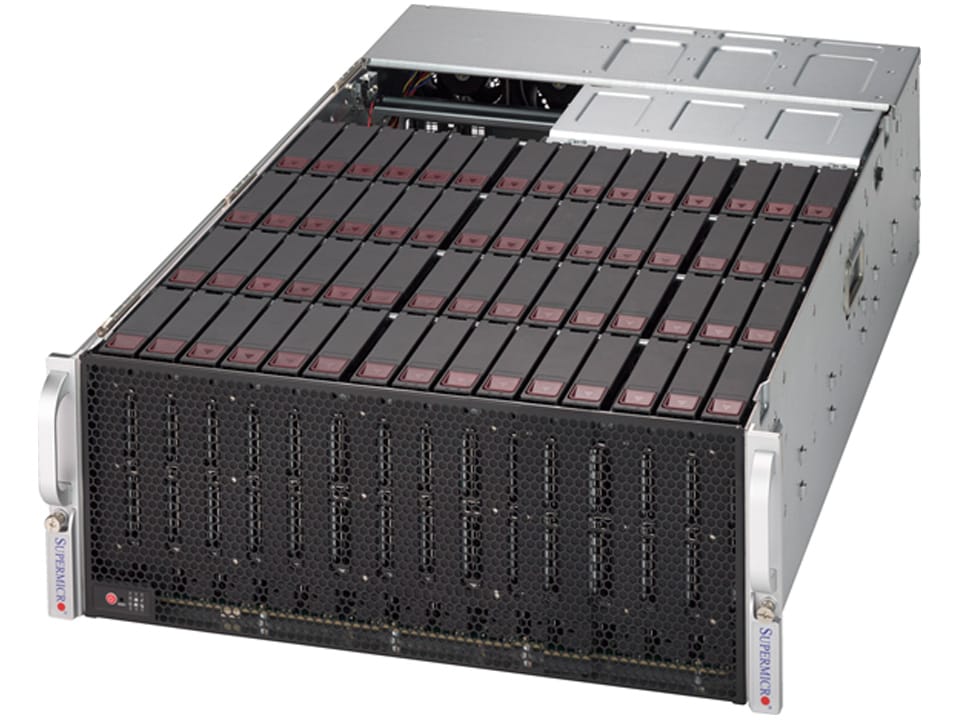

SSG-540P-E1CTR60H

Key Applications
- Database Applications
- Backup Storage, Cold Storage
- Data Warehousing, Archiving



Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 60x Top-loading hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
  6. 5 Hot-Swap 8cm redundant PWM fans
  7. Redundant Titanium 1600W Power Supply
Specifications
Product SKUs
SSG-540P-E1CTR60H
  • SuperServer SSG-540P-E1CTR60H (Black)

Motherboard


Super X12SPI-TF

Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 38C/96T; Up to 57MB Cache

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS
  • SAS3 (12Gbps) via Broadcom 3916; RAID 0, 1, 5, 6, 10, 50, 60 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
  • 4 USB 3.0 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-946STS-R1K6LPP

Dimensions and Weight
Height
  • 7"
Width
  • 17.2"
Depth
  • 30.2" (767mm)
Package
  • 33.25" (H) x 28" (W) x 42.5" (D)
Weight
  • Net Weight: 117 lbs (53 kg)
  • Gross Weight: 169.5 lbs (76.9 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x8 LP
  • Slot 2: PCI-E 4.0 x8 LP
  • Slot 4: PCI-E 4.0 x16 LP
  • Slot 6: PCI-E 4.0 x16 LP
  • Slot 7: PCI-E 4.0 x8 LP

Drive Bays / Storage
Hot-swap
  • 60x 3.5" hot-swap SATA3/SAS3 drive bays
M.2
  • 1x PCI-E 3.0 x4 and SATA

System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)

Power Supply
1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 1000W: 100-127Vac / 12A-9A / 50-60Hz
  • 1600W: 200-240Vac / 9A-7.5A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133.3A / Min: 0A (200Vac-220Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPI-TF

CSV-946STS-R1K6LPP
1

1
Super X12SPI-TF Motherboard

4U Chassis
Add-on Card / Module AOC-S3916L-H16IR-P 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD w/ exp,RoHS
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-946SEL1-1 2 30bay top-load SAS3 single expander E1C BPN for 946S (use 2 per 60-bay system),RoHS
Cable 1 CBL-CDAT-0728 2 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
Cable 2 CBL-PWEX-0861 1 Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
Cable 3 CBL-PWEX-0862 1 Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
Cable 4 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
Cable 5 CBL-PWEX-0864 1 Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
Cable 6 CBL-SAST-1281-100 2 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
Parts MCP-160-94602-0B 1 New mylar for BPN-SAS3-946SEL1-1 use in SC946S chassis; Rohs
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K63A-1R 2 1U 1000W/1600W redundant single output power supply with inp
*Power Distributor PDB-PT946S-L824 1 4U PDB support over 2KW for SC946S and 45bay system.,RoHS
*Cable 7 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
*Cable 8 CBL-0160L 2 US POWER CORD 16AWG, PB FREE
*Cable 9 CBL-0303L 1 4PIN POWER CABLE, ST TO RA, 40CM
*Cable 10 CBL-0459L 2 AC Power Cord Latch Clamp
*Cable 11 CBL-0481L 2 30 AWG 81CM SATA Cable S-S
*Cable 12 CBL-CDAT-0841 1 2X4F to 2X4F,PH2.54,round SGPIO cable,81CM,28AWG,RoHS
*FAN 1 FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
*Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
*Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
*Drive Tray(s) MCP-220-94601-0N 60 SC946ED 3.5" / 2.5" tool-less HDD tray
*Rear Window MCP-220-94612-0N 1 SC946L MB tray assembly for UP MB, 7x slots
*Rail Set MCP-290-00133-0N 1 Cable Management Arm, 2U height, 4
*Rail Set MCP-290-00137-0N 1 Rail set, Auto-latch, quick/quick, default 4U 17.2";W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2x 2.5" NVMe Cage (Rear) MCP-220-82620-0N +CBL-1231-85 + CBL-PWEX-1276 + CBL-0303L (female to female) 1 Rear hot-swap 2x 2.5" NVMe drive kit
2x 2.5" SATA/SAS Cage (Rear) MCP-220-82616-0N •+ 1x CBL-SAST-0699 • + 1x CBL-0234L • 1 Rear hot-swap 2x 2.5" SATA/SAS drive kit
CacheVault BTR-CVPM05 & BKT-BBU-BRACKET-05 (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCI-E location
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
Network Cards AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
Power Cord CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
TPM Module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
