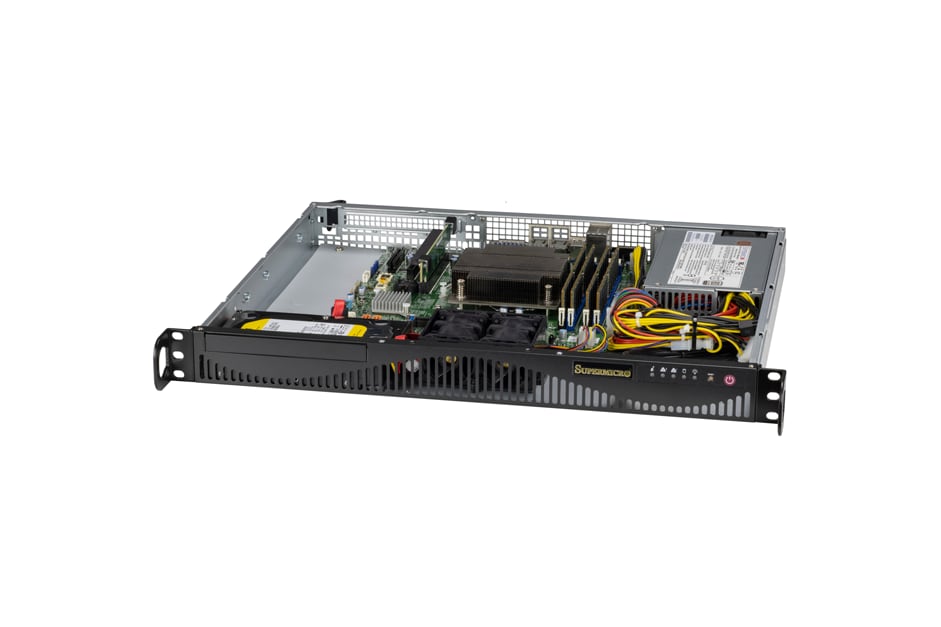

SYS-510T-ML

Key Applications
- General Purpose
- Entry Appliance
- Front-end, Web Hosting



Key Features

  1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
  3. 1 PCI-E 4.0 x8 (in x16 FHHL)
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. 1 Fixed 3.5" drive support (default); Up to 2 Fixed 3.5" drives or 3 Fixed 2.5" drives (opt.); Onboard 1x NVMe M.2
  6. Single Platinum 350W Power Supply
Specifications
Product SKUs
SYS-510T-ML
  • SuperServer SYS-510T-ML (Black)

Motherboard


Super X12STL-F

Processor
CPU
  • Single Socket H5 (LGA 1200)
  • Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
  • Support CPU TDP 95W
Cores
  • Up to 8C/16T; Up to 16MB Cache

System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • Yes

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C252
Network Connectivity
  • 2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

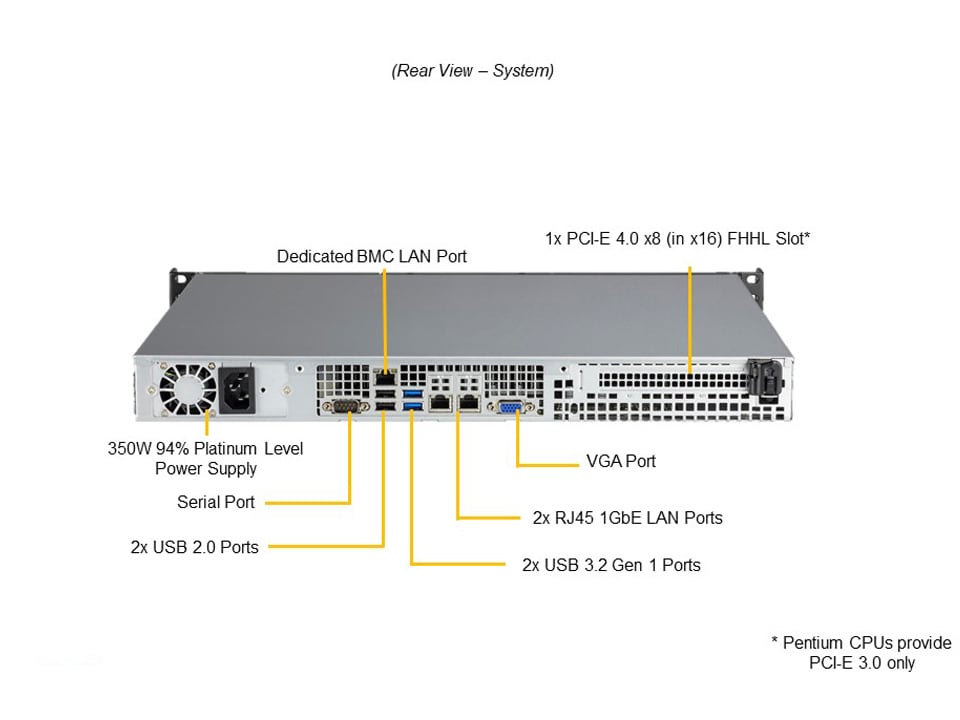

Input / Output
SATA
  • 6 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 4 USB 2.0 port(s) (2 headers; 2 rear)
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 6 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mini-1U
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 14.5" (368mm)
Package
  • 6.3" (H) x 22" (W) x 20" (D)
Weight
  • Net Weight: 11 lbs (4.99 kg)
  • Gross Weight: 14 lbs (6.35 kg)
Available Color
  • Black

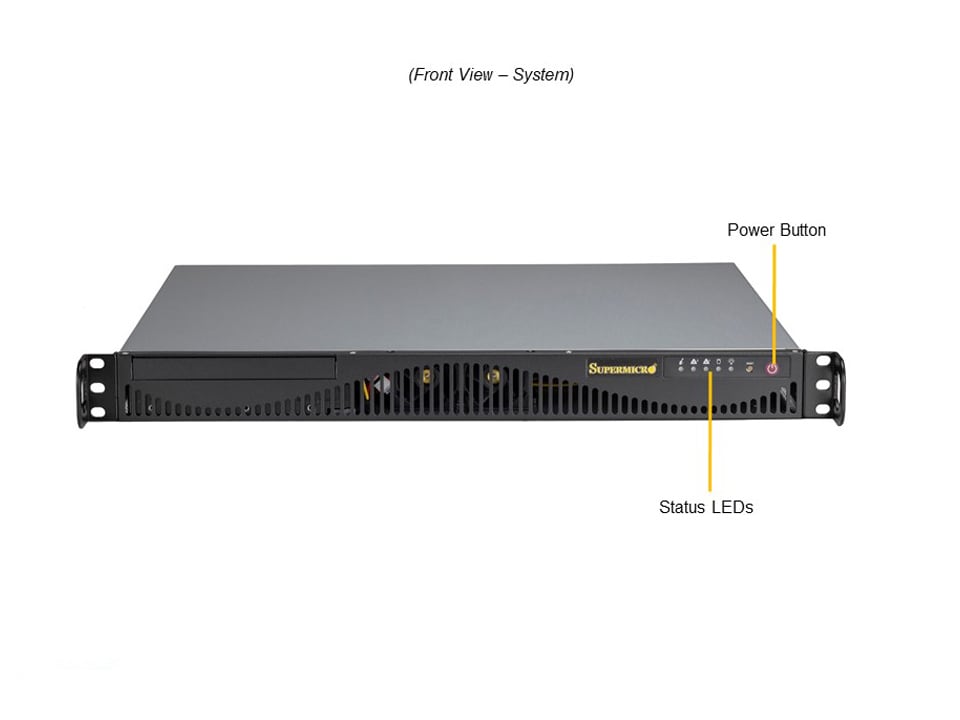

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

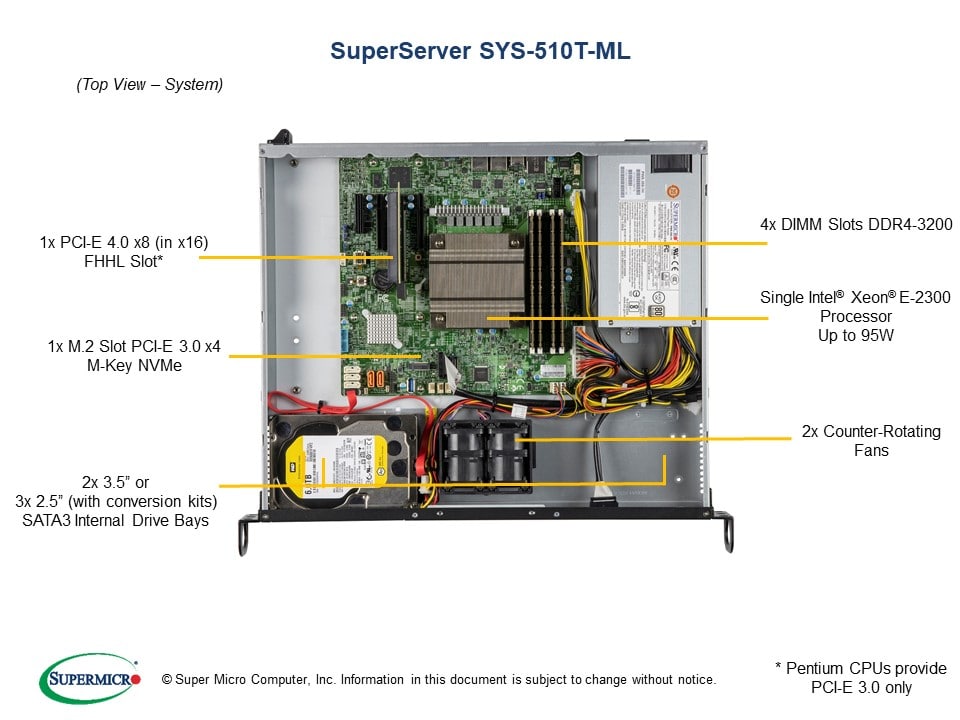

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x8 (in x16 FHHL)


  • (Pentium CPUs provide PCI-e 3.0 only.)

Drive Bays / Storage
Drive Bays
  • 2x 3.5" SATA drive bays
M.2
  • 1x PCI-E 3.0 x 4
  • M-key, 2280, 22110

System Cooling
Fans
  • 2 counter-rotation PWM 40x40x56mm Fan(s)

Power Supply
1U 350W Multi-output, Platinum level, W100xL180xH40mm,RoHS/REACH
Total Output Power
  • 350W
Dimension

(W x H x L)
  • 100 x 40 x 180 mm
AC Input
  • 350W: 100-240Vac / 2.5A-5A / 50-60Hz
+12V
  • Max: 29A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12STL-F

CSE-512F-350B1
1

1
Super X12STL-F Motherboard

Mini-1U Chassis
Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Manual MNL-2420-QRG 1 510T-ML Quick Reference Guide
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
*Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
*Cable 1 CBL-0156L 1 ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
*Cable 2 CBL-0260L 1 US POWER CORD 18 AWG, PBF
*Cable 3 CBL-0261L 1 40CM 7PIN SATA CABLE S-RA, PBF
*Cable 4 CBL-0262L 1 4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL
*FAN 1 FAN-0087L4 2 40x56,4 Pin PWM Fan
*Parts MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
*Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
*Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
*Parts MCP-290-00005-01 2 Black chassis handle for SC512F-520
*Peripheral Drive1 MCP-290-00006-01 1 Black DVD dummy cover for SC512, RoHS
*Fan Holder MCP-320-00003-01 1 Fan holder of two 40x40x56mm fans for SC512F-280
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCI-E 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
Cable for internal HDD CBL-0211L • 1 4PIN-TO-3X SATA POWER CABLE
CBL-0483L • - 29cm 30AWG SATA straight to straigh cable
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-51202-0N 1 Slim SATA DVD mounting kit
Internal 2.5" HDD Tray MCP-220-00051-0N • - Single 2.5" fixed HDD bracket
MCP-220-00044-0N • - Dual 2.5" fixed HDD bracket
Rail Kit MCP-290-00055-0N • 1 Quick-release rail set (25.6" ~ 33.05")
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor
AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor
