GPU System

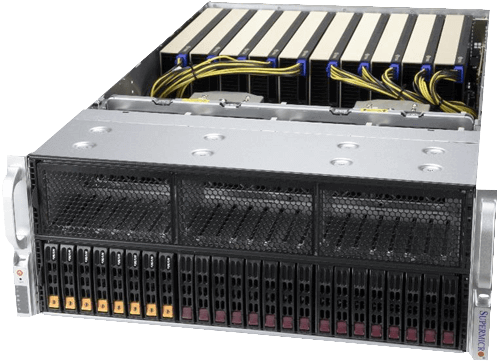

SYS-420GP-TNR

Key Applications
- High Performance Computing
- Rendering
- VDI
- AI/Deep Learning Training



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. 12 PCI-E Gen 4.0 X16 FHFL Slots
    AIOM/OCP 3.0 Support
  5. Flexible networking options
  6. 2x M.2 NVMe for boot drive only
    8x HOT SWAP 2.5" NVMe
    8x HOT SWAP 2.5" SATA
    8x HOT SWAP 2.5" SATA/SAS (AOC required)
    Total 24x 2.5" Hot-swap drive bays
  7. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  8. 4x 2000W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-420GP-TNR
  • SuperServer SYS-420GP-TNR (Black Front & Silver Body)

Motherboard


Super X12DPG-OA6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

GPU
Supported GPU
  • Up to 10 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)
  • NVIDIA A100, V100, A40, T4, Quadro RTX
  • Intel® Data Center GPU Flex 140/170
  • Supports both active and passive cooled GPUs
CPU-GPU Interconnect
  • PCI-E 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® I350
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G2TS-R4016BP

Dimensions and Weight
Height
  • 7" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Package
  • 26.57" (H) x 27" (W) x 41" (D)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Color
  • Black Front & Silver Body

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHFL
  • Slot 2: PCI-E 4.0 x16 FHFL
  • Slot 3: PCI-E 4.0 x16 FHFL
  • Slot 4: PCI-E 4.0 x16 FHFL
  • Slot 5: PCI-E 4.0 x16 FHFL
  • Slot 6: PCI-E 4.0 x16 FHFL
  • Slot 7: PCI-E 4.0 x16 FHFL
  • Slot 8: PCI-E 4.0 x16 FHFL
  • Slot 9: PCI-E 4.0 x16 FHFL
  • Slot 10: PCI-E 4.0 x16 FHFL
  • Slot 11: PCI-E 4.0 x16 FHFL
  • Slot 12: PCI-E 4.0 x16 FHFL

Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe dedicated)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control

Power Supply
2000W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc (For CCC Only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPG-OA6

CSE-418G2TS-R4016BP
1

1
Super X12DPG-OA6 Motherboard

4U Chassis
Add-on Card / Module AOM-PCIE4-418P-1-P 1 GPU board for 4U PCIE GPU system,HF,RoHS
Add-on Card / Module AOM-PIO-I2G 1 AOM-PIO-I2G
Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5
Cable 1 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 2 CBL-PWEX-0925 2 2x4,P3.0 to 2x4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS
Cable 3 CBL-PWEX-0929 1 2x4,PH4.2 to MicroFit,2x4,PH3,YL/RED,9.5A/pin,80CM,16AWG
Cable 4 CBL-PWEX-1028 10 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 5 CBL-PWEX-1080 1 Mini-Fit 2x2 F, to Mini-Fit 2x2 F, 10A/pin,7cm,16AWG,RoH
Cable 6 CBL-SAST-1215-85 4 Slimline x8 (STR) to Slimline x8 (STR),INT,15CM,85 OHM,
Cable 7 CBL-SAST-1231-85 6 Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM
Cable 8 CBL-SAST-1235-85 6 Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
Cable 9 CBL-SAST-1244-85 2 Slimline x8 (STR) to Slimline x8 (STR),45CM,85 OHM,RoHS
Cable 10 CBL-SAST-1266-100 2 Slimline x4 (STR) to Slimline x4 (STR) x4,INT 66CM,100
Drive Tray(s) MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray
Drive Tray(s) MCP-220-00167-0B 8 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0080AP4 2 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
*Power Supply PWS-2K08A-1R 4 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm
*Cable 11 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Cable 12 CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
*Cable 13 CBL-PWEX-1069 8 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
*FAN 1 FAN-0199L4-1 8 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
*Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
*Drive Tray(s) MCP-220-21602-0B 3 Black 2.5"; HDD dummy cover for SC213,216 (8 HDD Hex hole)
*Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X
*Parts MCP-260-41802-0N 1 IO shield for X12DPG-OA in SC418G
*Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
*Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2“ W
*Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
*Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2.5" NVMe Drive Trays MCP-220-00167-0B 1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock. Tool-less.
MCP-220-00121-0B 1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock.
2.5" SATA Drive Trays MCP-220-00047-0B 1 per drive Black gen 3rd hot-swap 2.5inch HDD tray
Global Services & Support OS4HR3/2/1 - 3/2/1 Year Onsite 24x7x4 Service
OSNBD3/2/1 - 3/2/1 Year Onsite NBD Service
GPU Cables CBL-PWEX-1028 (* 10 qty. included with each system.)* 1 per GPU GPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE CPU BLUE. 30CM. 16AWG. - NVIDIA A100 40GB / 80GB - NVIDIA A16 - NVIDIA A30 - NVIDIA A40 - NVIDIA A6000
CBL-PWEX-0665 1 per GPU GPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE 20CM.  20AWG/16AWG. - NVIDIA A10 - NVIDIA A5000
CBL-PWEX-1040 1 per GPU GPU power cable. 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. - NVIDIA A4000
GPU Dummy Tray MCP-240-00096-0N 1 GPU / Add-on Card Dummy Assembly (2 Slots)
Network and Cables AOC-S25G-M2S 1 2 Port 25 Gigabit SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
AOC-A100G-b2C 1 AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508,RoHS
AOC-ATG-i4SM 1 AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
AOC-ATG-i2TM 1 AIOM 2-port 10GBase-T RJ45, Intel X550,RoHS
AOC-A25G-M2S 1 AIOM Dual-Port 25GbE SFP28, Mellanox CX-6 LX w/ 1U height bracket,RoHS
CBL-NTWK-0942-MQ28C30M 1 ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Mellanox
AOC-ATG-i2SM 1 AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
AOC-683105AN-HDAT 1 Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen4x16 Cx-6 DE, RoHS
CBL-NTWK-0942-MQ28E50M 1 InfiniBand, EDR, QSFP28,100GbE,PASSIVE, 28 AWG, 5M, Mellanox,RoHS
AOC-STGS-i2T 1 Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
AOC-S25G-i2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
CBL-NTWK-0942-MQ28E20M 1 InfiniBand, EDR, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M, Mellanox,RoHS
AOC-653105A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card Single port, QSFP56, PCIe 3.0/4.0 x16, RoHS
AOC-S40G-I2Q 1 Intel XL710-BM2 2-port QSFP+ (40Gb/port) Gen3 x8 Standard Low Profile
AOC-S100GC-i2C 1 Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
MCX653106A-HDAT 1 Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
AOC-653106A-ECAT 1 ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, Dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
AOC-ATG-i2T2SM 1 AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
AOC-A25G-m2SM 1 AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
MCX653105A-ECAT 1 Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
AOC-S25G-I2S 1 Standard Low Profile 25G dual port SFP28, based on Intel XXV710
Note *** Requires MCP-240-00203-0N - -
* Requires x2 CBL-SAST-1281-100 - -
** Requires x1 CBL-SAST-1281-100 - -
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Storage Control Cards and Cables MCP-240-00203-0N 1 Remote Mounting Board for Supercap / Cache Vault. Occupies single PCIE SLOT.
BTR-CVPM05 *** 1 Supermicro Broadcom CACHEVAULT FOR AOC-S3916L-H16IR
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
AOC-S3808L-L8IT ** 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
AOC-S3916L-H16IR-32DD * 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
